RPT-100
Product Features

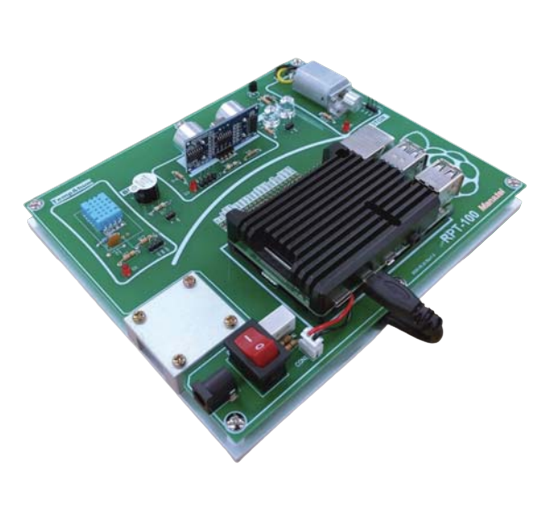

Raspberry Pi 4 System
Practice is possible without extra equipment
Understand Linux& Node-RED programming
Small size and lightweight
본문
Product Components
Item |
Quantity |
Raspberry Pi 4 |
1 |
Temp. & humidity sensor(DHT11) |
1 |
Ultrasound Sensor |
1 |
DCMotor |
1 |
Buzzer |
1 |
LED |
2 |
AC-DC Adaptor, DC5V, 3V |
1 |
1P Cable 200mm |
15 |
◎ Product Size and Weight
SIZE |
188(L) X 188(W) X 50(H)mm |
Packing Size |
420(L) X 330(W) X 55(H)mm |
Weight |
980g |

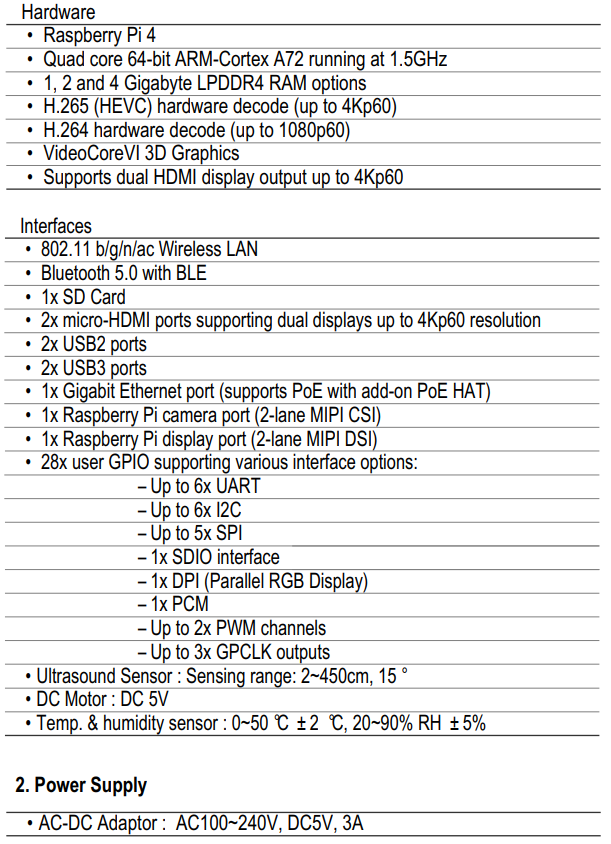

Product Specifications
Functions
Understand Raspberry Pi 4 OS Linux
Practice for Linux programming
Practice for Node-RED programming
Practice for Web server construction
Practice for Home page construction
Training Contents
Chapter 1. Building an Environment for Practicing Raspberry Pi
Chapter 2. Practicing the DC Motor Operation
Chapter 3. Practicing the Ultrasonic Sensor Operation
Chapter 4. Practicing the Temperature/Humidity Sensor Operation
Chapter 5. Practicing theNode-RED install and execution
Chapter 6. Practicing the LED Operation
Chapter 7. Practicing the Buzzer Operation
Chapter 8. Practicing the Server basic
