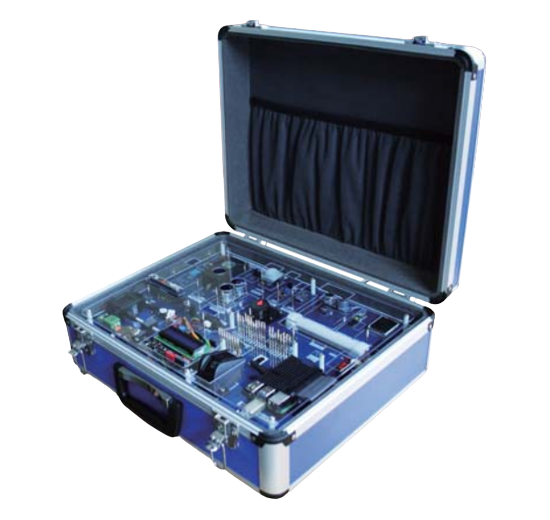

SBT-100
Product Features
Understanding various sensors and learning operational skills
Practice of sensor input/output value measurement technology
Practice interworking technology between sensor and actuator
Understanding environmental sensors, security sensors, healthcare sensors, automation sensors and practice application technology
The measurement terminal protrudes to the outside for convenient measurement.
Transparent cover treatment to prevent breakage of parts
본문
Product Components
Item |
Number |
Motion sensor |
1 |
Heart rate sensor |
1 |
Body temperature sensor |
1 |
Fiber sensor |
1 |
Distance measurement sensor |
1 |
Temperature sensor |
1 |
Ultrasonic sensor | 2 |
SMPS | 1 |
DC motor |
1 |
LED BAR |
1 |
Pressure sensor | 1 |
Illumination sensor | 1 |
Proximity sensor | 1 |
Vibration sensor | 1 |
Touch sensor | 1 |
FAN | 1 |
Jumper cable | 1SET |
Digital multimeter | 1 |
Textbook | 1 |
◎ Product Size and Weight
Product Size |
650(L) X 400(W) X 120(H)mm |
Weight |
5Kg |

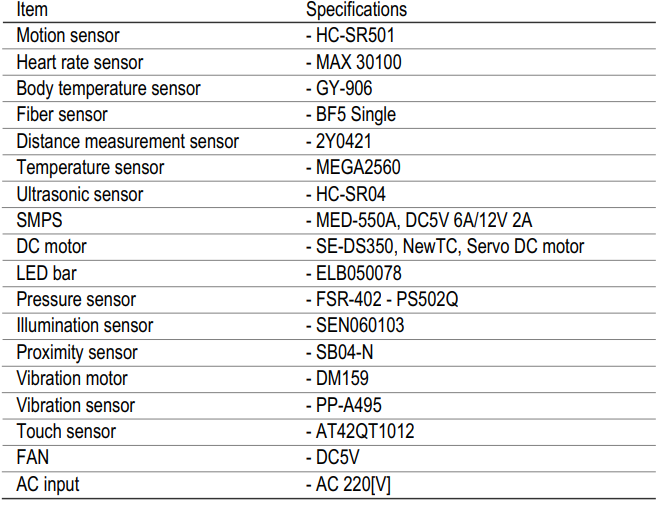

Product Specifications
Functions
Measurement practice of output voltage change according to sensor value change
Sensor and actuator interworking exercise
Environmental interworking practice using temperature sensor, illumination sensor, CO2 sensor and actuators.
Security interworking practice using ultrasonic sensors, motion sensors, and buzzers
Human body Interworking practice using body temperature measurement sensors, heart rate & blood oxygen saturation sensors
Training Contents
Basic practices
Chapter 1 Introduction of Sensor Basic Practice Equipment
Chapter 2 Temperature and Humidity Sensor Practice
Chapter 3 Illumination Sensor Practice
Chapter 4 Co2 Sensor Practice
Chapter 5 Pressure Sensor Practice
Chapter 6 Infrared Sensor Practice
Chapter 7 Ultrasonic Sensor Practice
Chapter 8 Electrostatic Touch Sensor Practice
Chapter 9 ECG Sensor Practice
Chapter 10 Fiber Sensor Practice
Chapter 11 Proximity Sensor Practice
Chapter 12 Distance Sensor Practice
Chapter 13 Vibration Sensor & Vibration DC Motor Practice
Application Practices
Chapter 14 Temperature Sensor and Fan Interworking Practice
Chapter 15 Illumination Sensor and LED Interworking Practice
Chapter 16 Ultrasonic sensor & pressure sensor and buzzer interworking exercise
