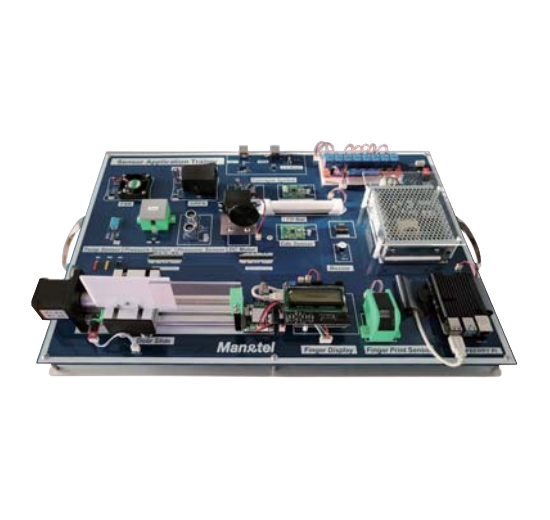

SAT-1000
Product Features
Understanding various sensors and operation skills
Acquire skills how to use Raspberry Pi
Acquire visual display technology of sensing result
Acquisition of sensor and actuator integrated control technology
Acquire Node RED programming skills
Understand environmental sensors, security sensors, automation sensors and acquire application technologies
Interworking practice such as temperature sensor and fan control, CO2 sensor and DC motor control
본문
Product Components
Product Name |
quantity |
control board Main body |
1set |
Raspberry Pi 4 |
1 |

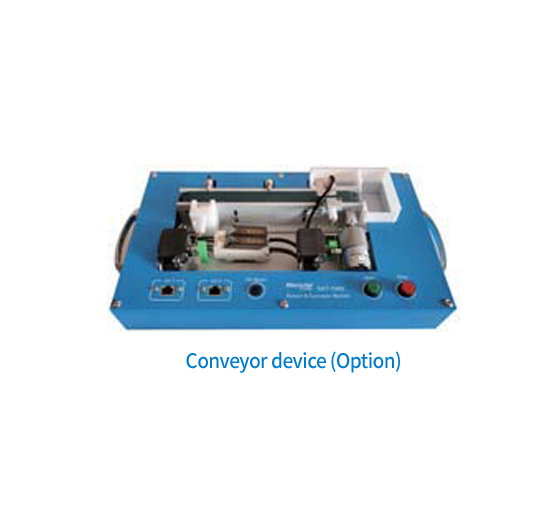

Conveyor device(Option) |
1set |
SMPS |
1 |
temperature Senser | 1 |
light sensor |
1 |
moisture sensor | 2 |
buzzer | 1 |
CO2 sensor |
1 |
fingerprint sensor |
1set |
ultrasonic sensor | 1 |
DC motor | 1 |
pressure sensor | 1 |
relay board | 1 |
siren | 1 |
FAN | 1 |
banana cable | 1set |
case | 1 |
textbook | 1 |
◎ Product Size and Weight
Product Size |
650(L) X 400(W) X 120(H)mm |
Packing Size | 670(L) X 500(W) X 270(H)mm |
Weight |
Bag weight : 5.5Kg / Packing box : 8kg |

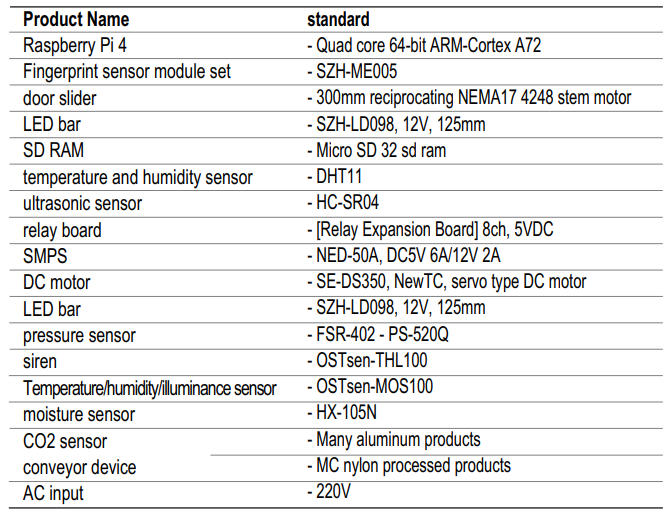

Product Specifications
Functions
Practice reading sensor values and displaying them visually
Actuator and Sensor related Practice is Possible
Easy drag and drop Node RED programming practice
Environmental control practice using temperature sensor, moisture sensor, illuminance sensor, CO2 sensor
Security control practice using ultrasonic sensor and siren
Proximity sensor, fiber sensor, and end sensor Conveyor device practice
Door opening/closing practice using fingerprint sensor
Automatic/manual operation practice using special conveyor device (Option)
Training Contents
Chapter 1 Introduction of sensor application training equipment
Chapter 2 Raspberry Pi System Environment Construction Practice
Chapter 3 Installing and Running Node-RED Program
Chapter 4 Understanding Node-RED Programming
Chapter 5 Temperature Sensor and Fan Control Practice
Chapter 6 Illuminance Sensor and Light (LED) Control Practice
Chapter 7 Ultrasonic Sensor and Pressure Sensor related Siren Control Practice
Chapter 8 CO2 Sensor and DC Motor Control Practice
Chapter 9 Moisture Sensor and DC Motor Control Practice for Water Supply
Chapter 10 Fingerprint sensor registration and door lock control practice
Chapter 11 Proximity Sensor and Fiber Sensor related Conveyor Device Control Practice (Available when purchasing option devices)
