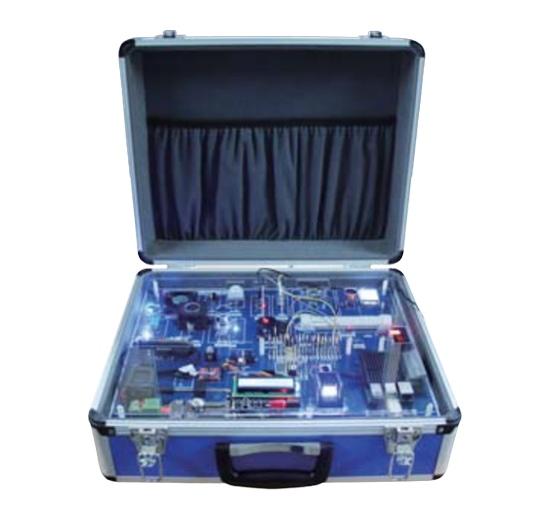

SAT-2000
Product Features
Understand various sensors and acquire measurement technology
Acquire actuator control technology
Acquire visual display programming technology for sensed results
Acquire control programming skills for sensor and actuator interworking
Acquire Node RED programming skills
Acquire application technology of environmental sensors, security sensors, human sensor and automation sensors
Acquire Raspberry Pi skills
All practice includes programming practice
Transparent cover treatment to prevent breakage of parts
본문
Product Components
Item |
Q'ty |
Control main body |
1 |
Raspberry Pi 4 |
1 |
SMPS |
1 |
Temperature sensor |
1 |
Illumination sensor |
1 |
moisture sensor |
1 |
buzzer | 2 |
Co2 Sensor | 1 |
fingerprint sensor |
1set |
ultrasonic sensor |
1 |
DC motor | 1 |
Pressure sensor | 1 |
relay board | 1 |
FAN | 1 |
Motion sensor | 1 |
Heart rate & blood oxygen saturation sensor | 1 |
Body temperature sensor | 1 |
Fiber sensor | 1 |
Distance measurement sensor | 1 |
jumper cable | 1set |
Case | 1 |
Textbook | 1 |

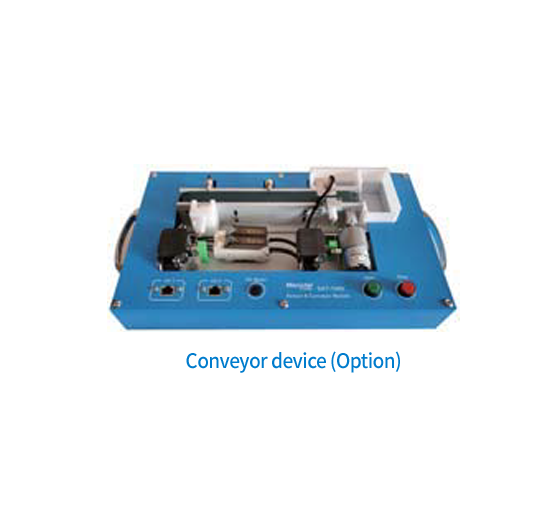

Conveyor unit (Option) | 1set |
◎ Product Size and Weight
bag size |
410(L) X 330(W) X 150(H)mm |
packing size | 470(L) X 400(W) X 270(H)mm |
Weight |
6Kg |

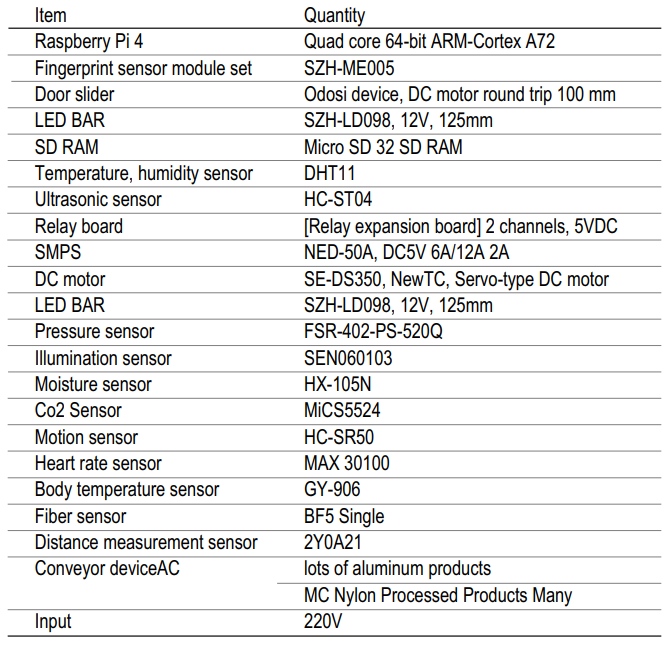

Product Specifications
Functions
Practice reading sensor values and display visually
Sensor application Interworking practice with actuators
Very easy Node RED programming practice of block-coding, drag-and-drop type.
Environmental control practice using temperature sensor, moisture sensor, illumination sensor, and Co2 sensor
Security control practice using ultrasonic sensors, motion sensors, and buzzers
Door Open/Close practice using fingerprint recognit
Human sensor practice using body temperature sensor and heart rate/blood oxygen saturation sensor
Automatic/manual operation practice using conveyor devices (Option)
Training Contents
Chapter 1 Introduction to Sensor Application equipment
Chapter 2 Establishing a Raspberry Pi System practicing Environment
Chapter 3 Installing and Running the Node RED Program
Chapter 4 Understanding Node RED Programming
Chapter 5 Body Temperature Sensor Value Display Programming practice
Chapter 6 Distance Sensor Value Display Programming practice
Chapter 7 Heart Rate & Blood Oxygen Saturation Sensor Values Display Programming practice
Chapter 8 Buzzer Control Programming practice
Chapter 9 DC Motor Control Programming practice
Chapter 10 Illumination Sensor and LED Control practice
Chapter 11 Co2 Sensor and DC Motor Control practice
Chapter 12 Moisture Sensor and DC Motor Control practice
Chapter 13 Ultrasonic Sensor and Buzzer control practice
Chapter 14 Pressure Sensor and Buzzer control practice
Chapter 15 Motion Detection Sensor and buzzer control practice
Chapter 16 Fingerprint Sensor Registration and Door Lock Control practice
Chapter 17 Practicing Fiber Sensor and Counting Behavior
Chapter 18 Close-up sensor, Fiber sensor, and conveyor device interlocking control practice (using Option devices)
