IoT-1000
Product Features

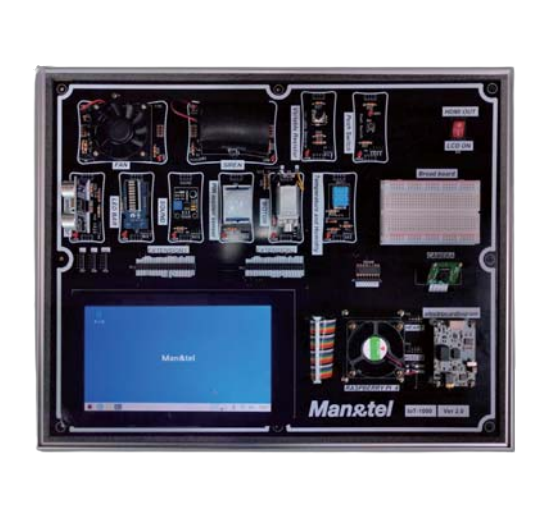

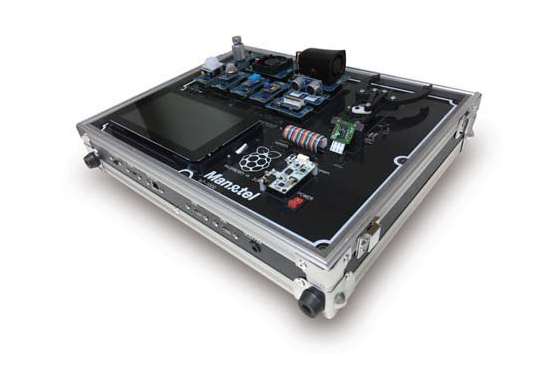

Raspberry Pi 4.0 based Internet of Things Experimental Equipment
Sensor and actuator operation practice applying C Language
5 different Smart IoT convergence system operation practice linked with sensor and actuator
Healthcare sensor(ECG, temperature, momentum, muscle) operation practice
Sensor and actuator operation practice with 7 inches touch screen
Checking data from server and real time streaming image through camera available
Practice of data output for ECG and muscle sensor utilizing serial chart.
본문
Product Components
Item |
Q'ty |
Main body |
1 |
Raspberry PI 4 | 1 |
7 Inch Touch Screen | 1 |
Basic sensor module |
10 |
Medical sensor module |
2 |
Rspberry PI camera module |
1 |
Muscle sensor pad | 1set |
Adaptor | 1 |
Ethernet cable |
1 |
bag |
1 |
1p cable | 1set |
textbook | 1 |
◎ Product Size and Weight
Size |
450(L) X 360(W) X 150(H)mm |
Packing size | 620(L) X 440(W) X 260(H)mm |
Weight |
9kg |

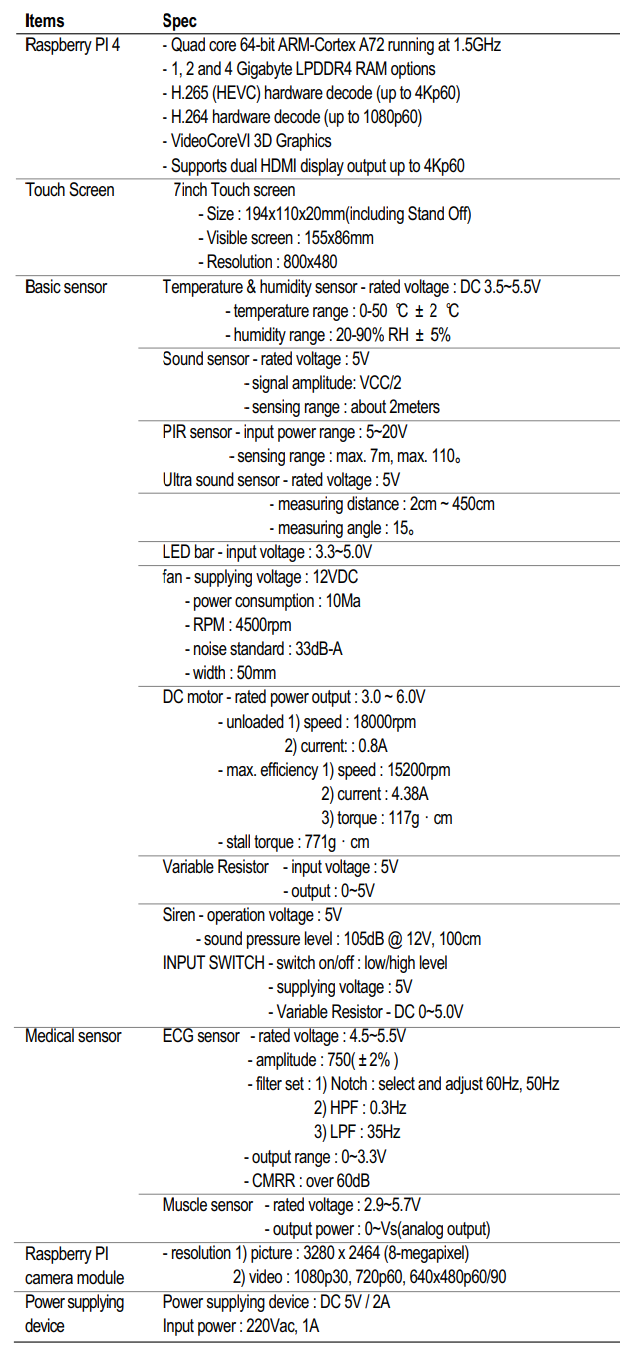

Product Specifications
Functions
Understanding and practice of basic sensor
Understanding and practice of medical and muscle sensor
Understanding and practice of actuator
Set up server, server demo practice and DB saving practice
Set up android studio and demo operation practice
Sensor and actuator practice applying Wi-Fi & Bluetooth communication in the App of Android OS base
Data saving of Sensor and actuator in the server and real time streaming of image through camera
Test experiment linked with sensor and actuator
Textbook
Chapter 1. Introduction to IoT
Chapter 2. IoT Hardware Architecture
Chapter 3. Building an Environment for Practicing Raspberry Pi System
Chapter 4. Software Installation
Chapter 5. Installation and Execution of Android Studio
Chapter 6. Practicing GPIO Basics and the DC Fan Operation
Chapter 7. Practicing the Siren Operation
Chapter 8. Practicing the Sound Sensor Operation
Chapter 9. Practicing the Ultra Sound Sensor Operation
Chapter 10. Practicing the LED Operation
Chapter 11. Practicing the DC Motor Operation
Chapter 12. Practicing the Operation of the Muscle
Chapter 13. Practicing the Temperature/Humidity Sensor Operation
Chapter 14. Practicing the PIR Sensor Operation
Chapter 15. Practice the ECG Sensor Operation
Chapter 16. Practicing the Database Basics
Chapter 17. Operating Raspberry Pi Server
Chapter 18. Practicing the Server Basics
Chapter 19. Practicing the App Demo Operation
Chapter 20. Practicing App Login and Result Display
Chapter 21. Practicing Wi-Fi App Demo Operation
Chapter 22. Practicing IoT application System
