SFT-1000
Product Features
Practice on Smart Farm control and operation is possible

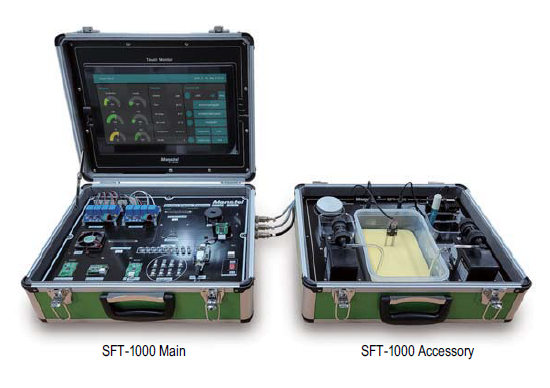

A miniature system in the same way as the actual production of crops using a green house
Temperature control, humidity control, lighting (degree) control, ventilation control practice available
Nutrient solution control and soil moisture control practice possible
Control practice programming using Raspberry Pi

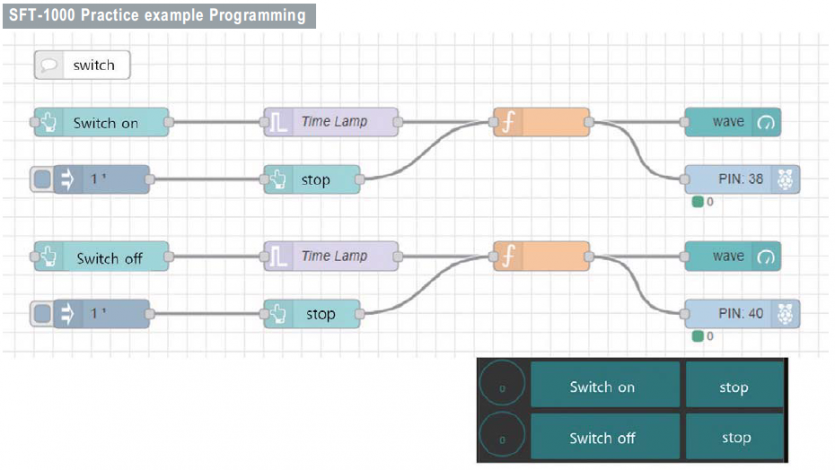

Programming uses Node RED, a very easy block coding method

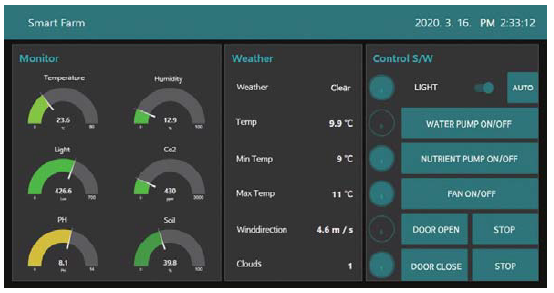

Dashboard for real-time monitoring Programming included in training content
본문

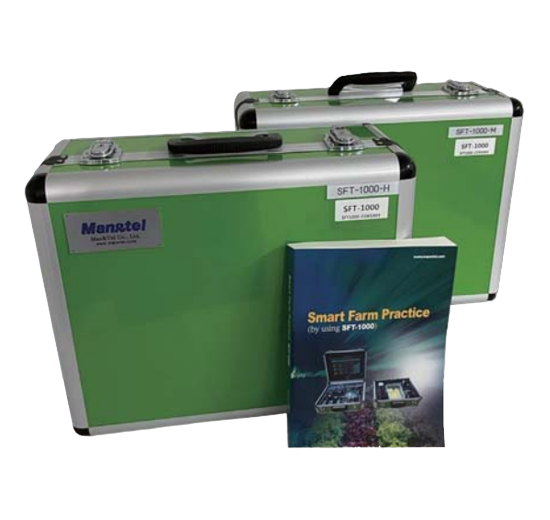

Product Components
body (bag) |
1set |
Accessory set (bag) |
1set |
Raspberry Pi 4 |
2 |
13”touch screen | 1 |
Co2 sensor |
1 |
light sensor | 1 |
Soil Moisture Sensor | 1 |
PH sensor | 1 |
temperature/humidity sensor |
1 |
ventilator |
1 |
Nutrient supply pump | 1 |
water supply pump | 1 |
LED module | 1 |
set of actuator motors | 1 |
app program | 1 |
Textbook, model answer | 1 book each |
◎ Product Size and Weight ( Main Bag )
Size |
420 (W) x 340 (L) x 170 (H) mm |
Weight | 8.6 kg |
Power Consumption |
40W |
◎ Product Size and Weight ( Accessory Bag )
Size |
420 (W) x 340 (L) x 180 (H) mm |
Weight |
6.1 kg |

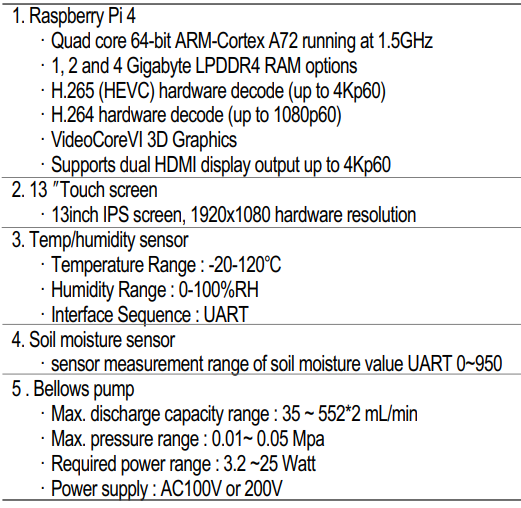

Product Specifications
Training Contents
Chapter 1 Introduction to the SFT-1000
Chapter 2 SFT-1000 Hardware Architecture
Chapter 3 Raspberry Pi System Practice Environment Construction
Chapter 4 Linux Program Basic Practice
Chapter 5 Installing and Running Node RED Hands-On Programming
Chapter 6 Understanding Nord RED Programming
Chapter 7 Nord RED Programming Practice
Chapter 8 Temperature Control Practice
Chapter 9 LED Control Practice
Chapter 10 Illuminance Control Practice
Chapter 11 Wind Control Practice (Using DC Fan)
Chapter 12 Water Pump Practice
Chapter 13 Humidity and Moisture Control Practice
Chapter 14 Actuator Motor Control Practice
Chapter 15 Understanding Databases
Chapter 16 Database Exercises
Chapter 17 Monitoring Practice
Chapter 18 Emergency Notification Function Practice
Chapter 19 Convergence System Operation Practice
