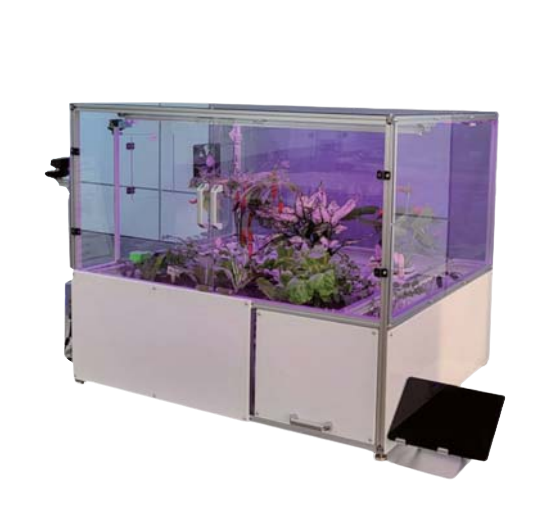

SFCT-1000
Product Features
Smart Farm cultivation practice with sensor application
Understanding and acquiring technology for sensors of growing crops
Acquisition of control technology for actuators (water pump, etc.) for growing crops
Acquire Node RED programming skills
Practice of related control of sensors and actuators for cultivation of crops
Server Construction and DB management practice using MySQL and Node-RED
Remote control and monitoring
본문
Product Components
Product Name |
quantity |
Smart farm house body |
1set |
Raspberry Pi 4 |
1 |
Control box |
1 |
SMPS |
1 |
temperature Senser
|
1 |
illuminance sensor |
1 |
moisture sensor | 4 |
water level sensor | 2 |
Growth LED Bar |
5 |
hydraulic pump |
5 |
pH sensor | 1 |
SERVO motor | 1 |
plant set | 1set |
relay board | 2set |
TV(49”) | 1 |
tabletPC | 1 |
Cooling FAN | 1set |
Hydroponics Supplies | 1set |
textbook | 1 |
◎ Product Size and Weight
Product Size |
1000(L) X 800(W) X 830(H)mm |
Packing |
1160(L) X 960(W) X 1100(H)mm |
Weight(Product) |
40kg |
Weight(Packing) |
90kg |

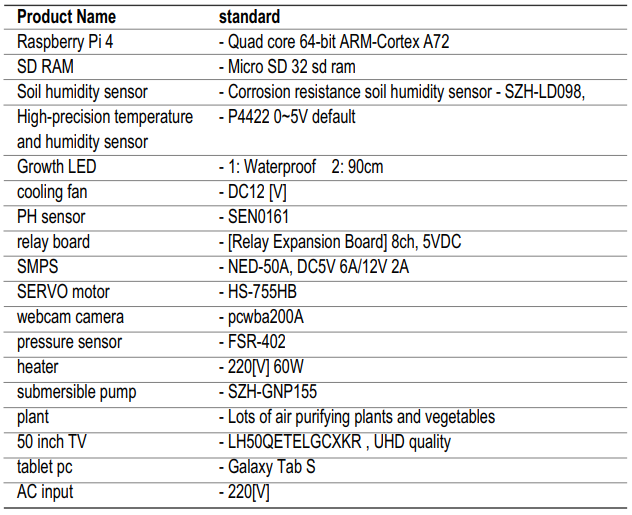

Product Specifications
Functions
Practice reading sensor values and displaying them visually
related Door Temperature/humidity sensor, illuminance sensor, moisture sensor, and pH sensor Opening/closing, LED, water supply tank, concentration correction liquid, ventilation fan control practice
Easy drag and drop Node RED programming practice
Environmental control practice using temperature sensor, moisture sensor, and illuminance sensor
Acquire skills to utilize Raspberry Pi
Remote control and monitoring function using a smart device (tablet)
Training Contents
Chapter 1 Construction of Raspberry Pi System Practice Environment
Chapter 2 Installing and Running Node-RED Program
Chapter 3 Understanding Node-RED Programming
Chapter 4 Practice of LED Control customized for crop
Chapter 5 Practice related with soil moisture sensor and water supply
Chapter 6 Practice related with pH sensor and density correction liquid
Chapter 7 Ventilation fan and window open practice related with temperature
Chapter 8 Remote Control and Monitoring Practice
Chapter 9 Server construction and DB management using MySQL and Node-RED
