RFDT-1000
Product Features
Helps users acquire basic RF circuit designing skills.
Helps users acquire RF module manufacturing skills.
Provides RF circuit measuring practices.
Provides chip components' value measuring practices in high frequency band.
본문

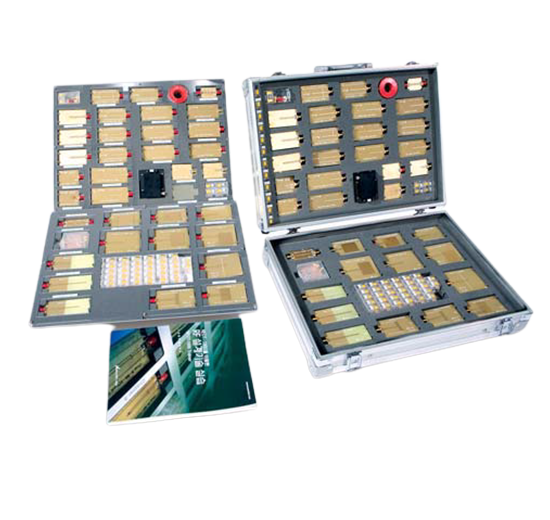

Product Components
Items | Quantity | Spec |
The finished PBA | 52EA |
|
Practice and manufacturing RF PCB | 56EA |
|
Chip component (R.L.C) | 2,300ea (46kinds x 50ea) | 46 kinds |
Cooper tape | 1 | A4 |
Enameled wire | 1 roll | 10m |
RF Cable | 2 |
|
Textbook | 1 |
|
Carrying bag | 1 |
|
Chip components measuring JIG | 1Set |
|

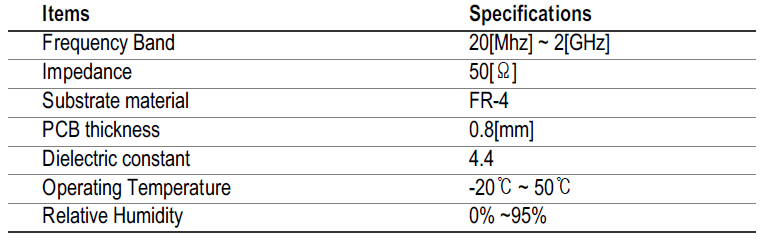

Product Specifications
Functions

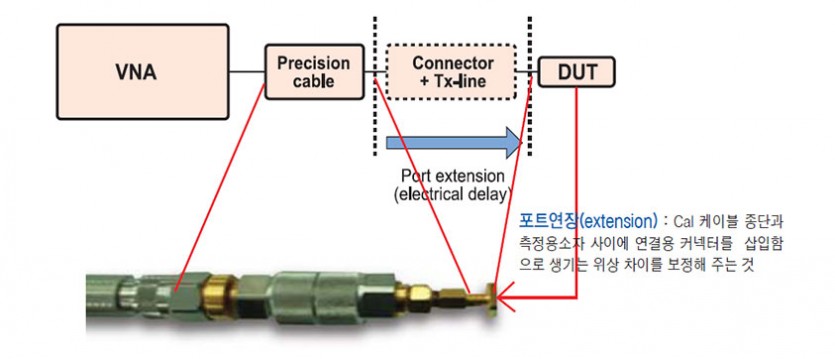

Understanding port extension skill.
Understanding how to measure chip impedance and changes of the impedance.
Understanding principle of microstrip stub and impedance calculation.
Understanding RF choke design and characteristic measurement.

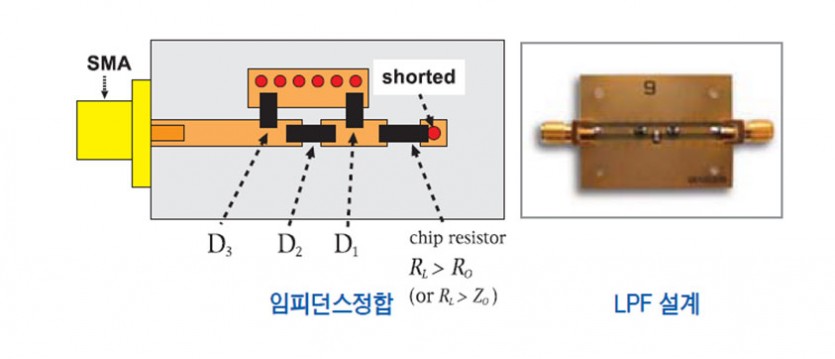

Impedance matching : L,C matching converter, Stub matching, L,C Matching in transmission line.
LC filter1 : Understanding types and operation of low pass filter, Implementing them on microstrip lines and measuring characteristic values.
LC filter2: Designing&manufacturing band pass filter and understand its characteristics.
Designing, manufacturing and tuning monopole antenna.
Designing microstrip patch antenna and understanding power feed.
Training contents
Chapter 1. Port Extension
Chapter 2. Measuring Chip Impedance
Chapter 3. Microstrip stub
Chapter 4. RF choke
Chapter 5. Impedance Matching 1 (using lumped element L, C)
Chapter 6. Impedance matching 2 (using a converter)
Chapter 7. Impedance matching 3 (using stub matching)
Chapter 8. Impedance matching 4 (using L and C loaded on transmission line)
Chapter 9. LC low pass filter
Chapter 10. LC bandpass filter
Chapter 11. Monopole Antenna
Chapter 12. Microstrip Monopole Antenna
Chapter 13. Microstrip Patch Antenna 1
Chapter 14. Microstrip Patch Antenna 2
Chapter 15. Microstrip Patch Antenna 3
