ARPM-1000A
Product Features
RF signal generator is not included in ARPM-1000A
Signal generator should be prepared as external equipment.
Practice of Antenna characteristics is possible
Suitable for training Antenna designing, manufacturing, measuring.
Radiation pattern can be measured without extra equipment
Auto calibration function is used to set maximum input power position
본문

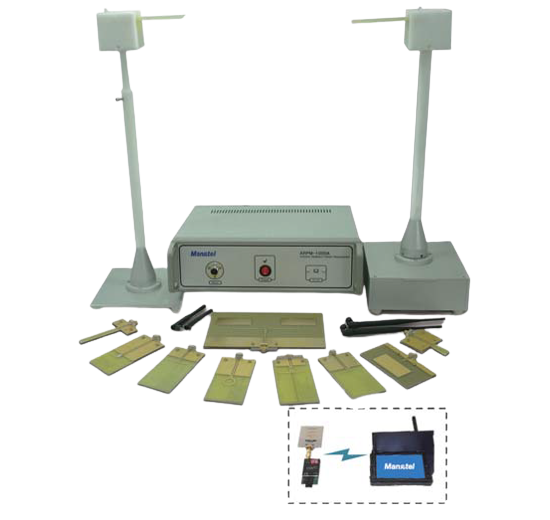

Product Components
Product name | Quantity |
MAIN System | 3 |
Antenna | 18 |
Antenna base | 2 |
Program USB | 1 |
Wrench Set | 1 Set |
Antenna Fixing Bracket | 2 |
Carrying bag | 1 |
image transceive | 1 |
Textbook | 1 book |
image transceive | 1 Set |
Product Specifications
Functions
1. Practice for Antenna Characteristics
1) Practice for the Radiation pattern [Supplying Antenna]
Yag antenna
Dipole antenna
Loop antenna
Inverted F antenna
Array Patch antenna
Chip antenna
Monopole antenna
Patch antenna
2) Practice for the Antenna characteristics by varying
Resonance frequency
Gain
3) Practice for Designing, Manufacturing and Measuring
Yagi antenna
Loop antenna
Dipole antenna
4) Practice for Antenna Applied Image Transmission
2. Practice in GUI Environment
Textbook
Part 1. Introduction and Installation of Program
Chapter 1. Introduction of system
Chapter 2. Program Installation and Instruction
Part 2. Practice for Antenna characteristics
Chapter 3. Practice for Dipole antenna
Chapter 4. Practice for Yagi antenna
Chapter 5. Practice for Monopole antenna
Chapter 6. Practice for Loop antenna
Chapter 7. Practice for Ceramic Chip antenna
Chapter 8. Practice for Inverted F antenna
Chapter 9. Practice for Patch and Array Patch antenna
Part 3. Practice for antenna Impedance matching and antenna Gain measurement.
Chapter 10. Practice for antenna Impedance matching
Chapter 11. Practice for antenna Gain measurement
Part 4. Practice for antenna Design and Manufacture
Chapter 12. Manufacture of Dipole antenna
Chapter 13. Manufacture of Loop antenna
Chapter 14. Manufacture of Yagi antenna
Part 5. Practice for Antenna Applied Image Transmission(5.8GHz)
Chapter 15. practicce for 5.8GHz Antenna Image Transceiver
