MW--5000
Product Features
Allowing students to train themselves in microwave components design and manufacturing & measuring by using Passive and Active devices and program at 5.8GHz.
For these experiment, standard devices and specification & documents are supplied with software program as reference.
Communication software : Microwave Communication Program V1.0
Design Simulator : Ansoft Designer SV
본문

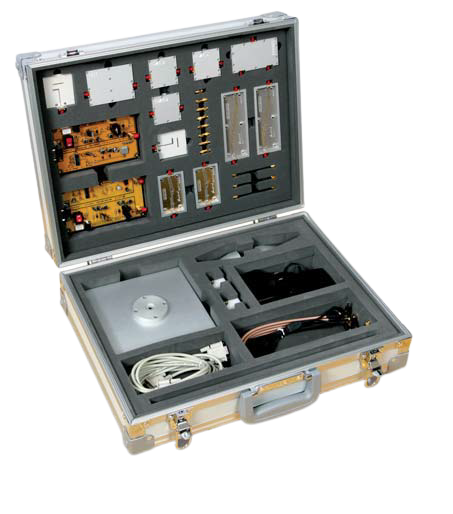

Product Components
Product name | Quantity |
FSK Modulator | 1EA |
FSK Demodulator | 1EA |
RF Amplifier | 2EA |
Detector | 2EA |
Band Pass Filter 5.7GHz | 1EA |
Band Pass Filter 5.8GHz | 1EA |
Power Divider | 1EA |
Low Noise Amplifier | 1EA |
Yagi Antenna | 2EA |
DC Power Adaptor | 2EA |
DC Power Cable | 2EA |
RS-232C Cable | 2EA |
RF Cable | 3EA |
Carriage bag 1EA | 1EA |
Antenna Cable | 2EA |
Antenna Supporter | 2set |
SMA Adaptor | 6EA |
50 ohm Terminator | 1EA |
Software program | 1EA |
Textbook | 1EA |
Answer sheet (Included in USB) | 1EA |
Program USB | 1EA |

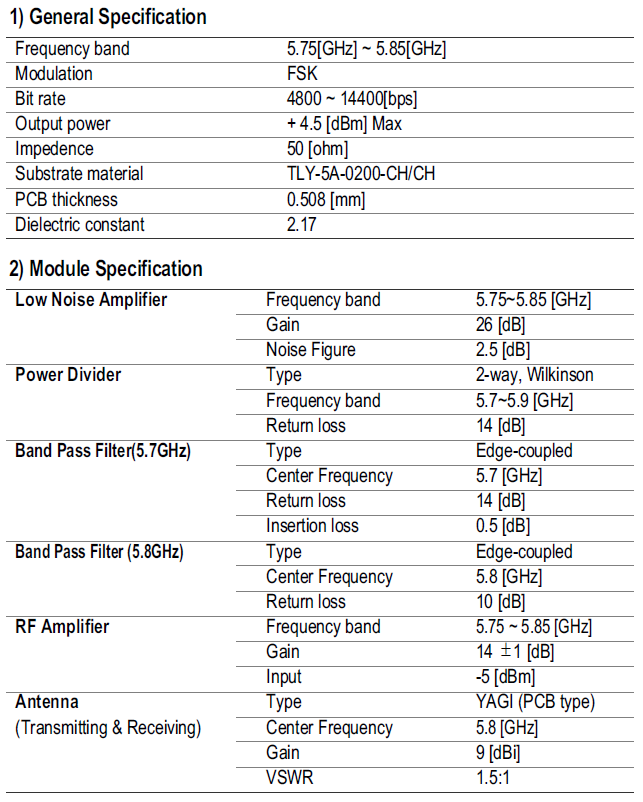

Product Specifications
Functions
Communication using the Microwave system
Measurement in Microwave system
FSK Modulation & Demodulation in Microwave band
File transfer and data transmission
Understanding of the microstrip line design theory
Understanding of the basic theory of microwave devices
Design and simulation of Microwave devices
Experiments in manufacturing and measurement of Microwave devices.
Signal Generator and Spectrum Analyzer can be used for measuring the wave form of all the substrates manufacturing by students.
Training Contents
Chapter 1 Introduction of Microwave Communication Trainer
Chapter 2 FSK Modulator
Chapter 3 RF Amplifier
Chapter 4 Antenna
Chapter 5 Low Noise Amplifier
Chapter 6 Power Divider
Chapter 7 Band Pass Filter
Chapter 8 Detector
Chapter 9 FSK Demodulator
Chapter 10 Microwave Communication Experiments
