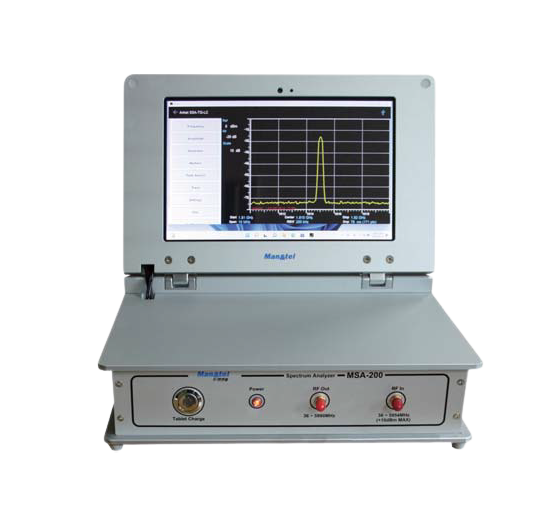

MSA-100 / MSA-200
Product Features
Windows OS based
10.1inch Touch monitor FHD Screen
Built-in RF signal generator
All in One system with display device
Touch control on LCD panel
Small and light
USB, Built-in Communication interface
Wireless keyboard & Mouse
본문
Product Components
Item | Quantity |
Main body | 1 |
10.1 inch tablet pc | 1 |
30cm SMA male to male SS405 RFcable | 2 |
User manual & Textbook | 1 |
Program USB | 1 |
Wireless keyboard/mouse | 1 |
AC/DC Adaptor 12V, 5A | 1 |

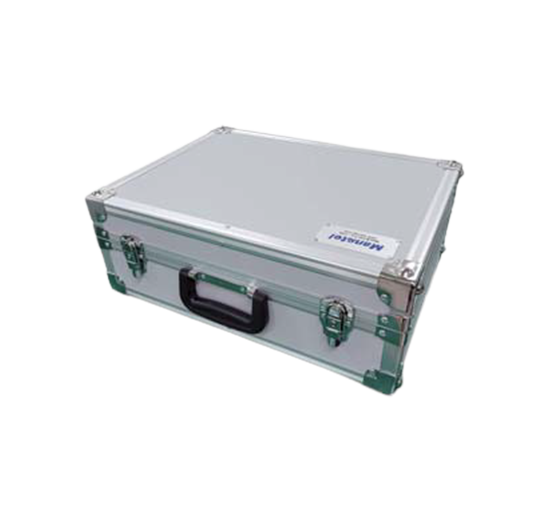

Aluminum bag [Option] | 1 |
LPF Module [Option] | 1 |
BPF Module [Option] | 1 |
Power divider Module [Option] | 1 |
20Db coupler Module [Option] | 1 |
Antenna [Option] | 1 |

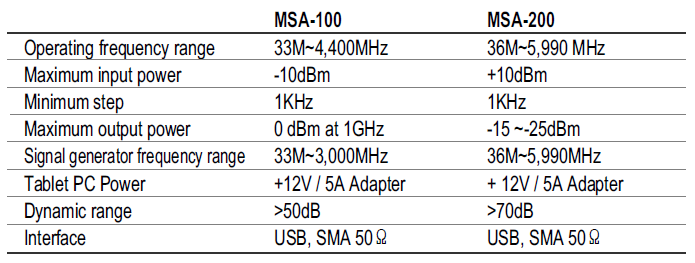

Product Specifications
Functions
Spectrum Measurement function
Spectrum analysis Training
Output Frequency control function
Output Power control function
Span adjustment function
Training Contents
Chapter 1 Usage of Spectrum Analyzer (MSA-100)
Chapter 2 RF Power Level Measurement
Chapter 3 LPF Filter Characteristic Measurement
Chapter 4 BPF Characteristic Measurement
Chapter 5 Power Divider Characteristic Measurement
Chapter 6 Antenna receiving power Measurement
Chapter 7 Radiation power measurement
Chapter 8 Directional Coupler Characteristic Measurement
