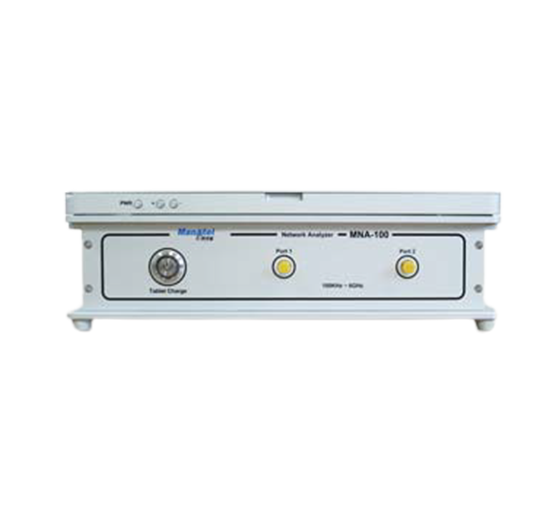

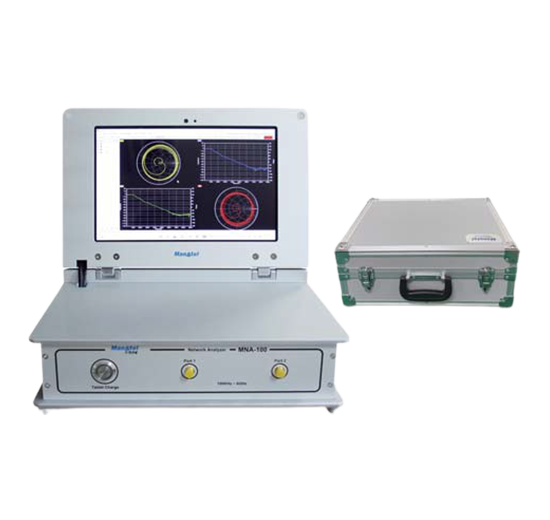

MNA-100
Product Features
Providing network analysis function and training on how to use it
Windows OS based
10.1inch Monitor FHD Screen
Built-in RF signal generator
All in one system (Main and Tablet)
Touch control on LCD panel
Small and light
Ultra-low noise power supply
USB, Built-in Communication interface
본문
Product Components
Items |
Quantity |
Main body | 1 |
10.1 inch tablet pc |
1 |
30cm SMA male to male SS405 RFcable |
2 |
User manual & Textbook |
1 |
Program USB |
1 |
Wireless keyboard/mouse |
1 |
SMA male calibration kit(open x1, short x1, load x2 |
4 |
SMA female to female connector |
2 |
SMA male to male connector |
2 |
AC/DC Adaptor 12V, 5A | 1 |
Items [OPTION] | Quantity |
Aluminum bag | 1 |
LPF Module | 1 |
BPF Module | 2 |
Power divider Module | 1 |
20Db coupler Module | 1 |
Antenna | 3 |

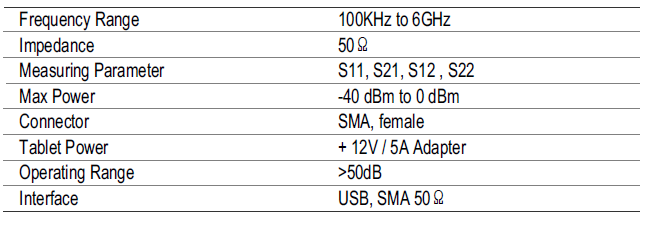

Product Specifications
Functions
2-port vector network analyzer
Network analyzer usage training
S11, S21, S12, S21 Measurement
Control by using touchpad.
Built-in 7.6V / 3,250mAh Li-Polymer
Training Contents
Chapter 1 Usage of Network Analyzer (MNA-100)
Chapter 2 Dipole Antenna(900MHz) Characteristic Measurement
Chapter 3 Monopole Antenna(2.4GHz) Characteristic Measurement
Chapter 4 Yagi Antenna(2.4GHz) Characteristic Measurement
Chapter 5 LPF Characteristic Measurement
Chapter 6 BPF (2.4GHz, 5.8 GHz) Characteristic Measurement
Chapter 7 Power Divider(2.4GHz) Characteristic Measurement
Chapter 8 Directional Coupler Characteristic Measurement
