MATS-1000A
Product Features
RF signal generator is included
Practice for Antenna characteristics is possible
Signal frequency and Output power is variable.
Suitable for training Antenna design, manufacturing, measurement.
Practice is possible without extra measuring equipment
Auto calibration is included to set maximum input power position.
본문

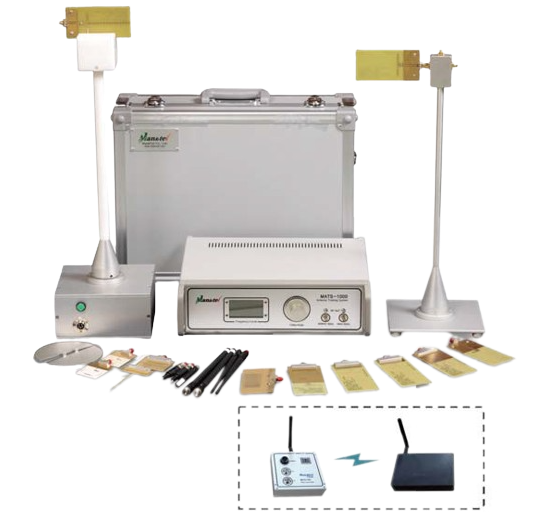

Product Components
Items | Quantity |
Main system | 1 |
Text Book | 1 |
Manufacturing antenna | 3 |
Antenna | 18 |
Antenna Base | 2 |
Program USB | 1 |
Wrench set | 1 |
Antenna Fixing Bracket | 2 |
Carrying Bag | 1 |
Horn Antenna [Option] | 1 |
Video Transceiver(VT-100) [Option] | 1 |

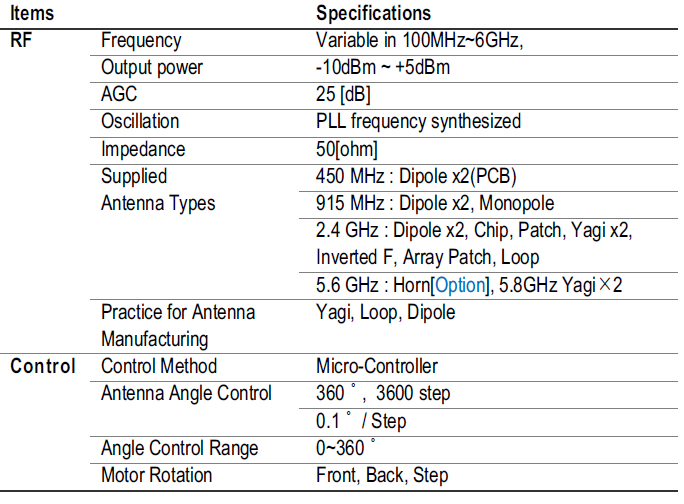

Product Specifications
Functions
1. Practice for Antenna characteristics
1) Practice for the Radiation pattern [Supplying Antenna]
Yagi antenna
Dipole antenna
Loop antenna
Inverted F antenna
Array Patch antenna
Chip antenna
Monopole antenna
Patch antenna
2) Practice for the Antenna characteristics by varying source frequency
Resonance frequency
Gain
3) Practice for Designing, Manufacturing and Measuring the following
Yagi antenna
Loop antenna
Dipole antenna
4) Practice for Antenna Applied Video Transmission
2. Practice in GUI Environment
Training contents
Part 1. Introduction and Installation of Program
Chapter 1. Introduction of system
Chapter 2. Program Installation and Instruction
Part 2. Practice for Antenna characteristics
Chapter 3. Practice for Dipole antenna
Chapter 4. Practice for Yagi antenna
Chapter 5. Practice for Monopole antenna
Chapter 6. Practice for Loop antenna
Chapter 7. Practice for Ceramic Chip antenna
Chapter 8. Practice for Inverted F antenna
Chapter 9. Practice for Patch and Array Patch antenna
Part 3. Practice for antenna Impedance matching and antenna Gain measurement
Chapter 10. Practice for antenna Impedance matching
Chapter 11. Practice for antenna Gain measurement
Part 4. Practice for antenna Design and Manufacture
Chapter 12. Manufacture of Dipole antenna
Chapter 13. Manufacture of Loop antenna
Chapter 14. Manufacture of Yagi antenna
Part 5. Practice for Antenna Applied Video Transmission(5.8GHz)
Chapter 15. practicce for 5.8GHz Antenna Video Transceiver
