MW-1000
Product Features

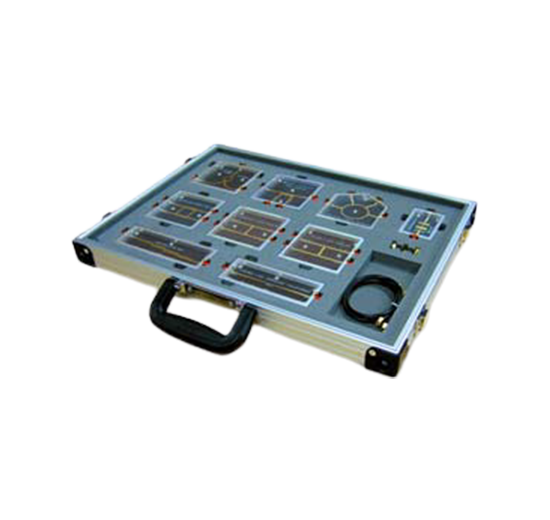

An experimental equipment to educate Microwave Component Design, Manufacturing, and Measuring techniques include Microstrip line theory and Microwave device design theory.

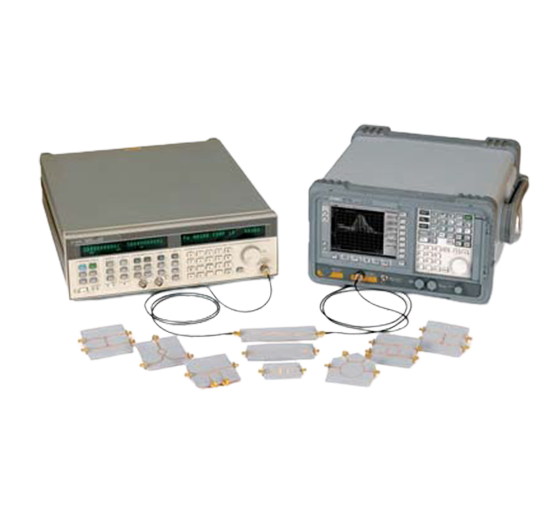

Experiment in Microwave component design and Manufacturing & Measurement using microstrip line theory.
본문
Product Components
Product name | Quantity |
Main Components | 9 |
Carriage bag | 1 |
Textbook | 1 |
RF Cable | 2 |
50 ohm terminator | 2 |
Answer Sheet | 1 |

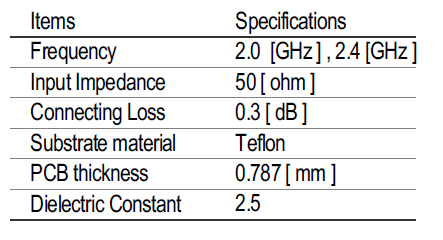

Product Specifications
Functions
Study the microstrip line design theory
Study the basic theory of microwave component
Microwave component design & simulation
Microwave component manufacturing
Microwave component measurement
Microwave component analysis of characteristics
Training Contents
Part I Introduction
Chapter 1 Microwave Experiment Kit Overview
Part II Experment of the Microwave passive Component
Chapter 2 Tapered Line Impedance Transformer
Chapter 3 Wilkinson Power Divider
Chapter 4 Quadrature Hybrid Coupler
Chapter 5 Coupled Line Directional Coupler
Chapter 6 Folded Lange Coupler
Chapter 7 Unfolded Lange Coupler
Chapter 8 180° Hybrid
Chapter 9 Stepped Impedance Low Pass Filter
Chapter 10 Coupled Line Band Pass Filter
