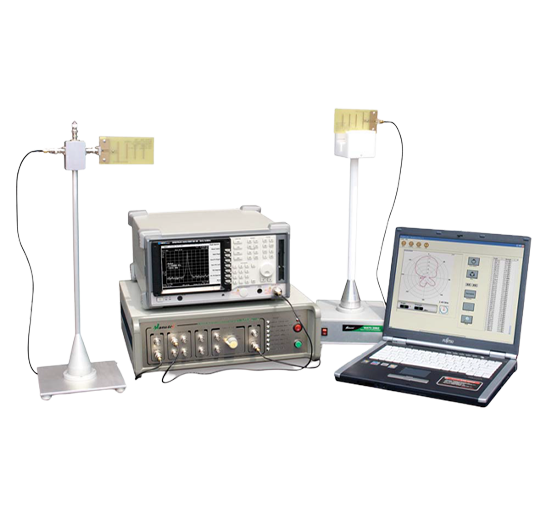

WATS-2002
Product Features
Most experiment is possible without extra measuring equipment.
Antenna characteristics measurement.
Mobile communication propagation experiment.
Propagation modeling & Loss Simulation.
Auto Calibration.

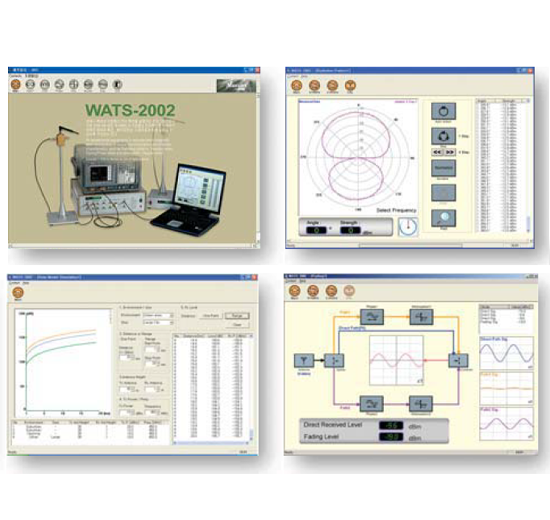

User interface with GUI windows.
본문
Product Components
Product name | Quantity |

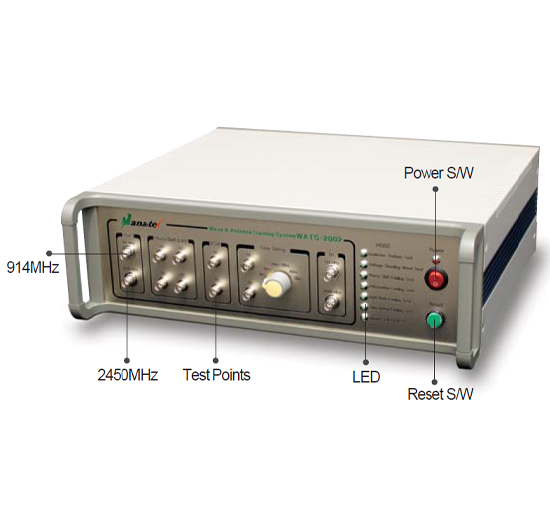

Main body | 1 |
Carriage Bag | 1 |
Textbook | 1 |
Antenna | 14 |
Training Antenna | 3 |
Antenna Base | 2 |
RF Coaxial Cable | 3 |
RS-232C Cable | 2 |
Adaptor | 1 |
Wrench | 1 |
Program USB(Multi-media USB) | 1 |
Antenna Fixing Bracket | 2 |

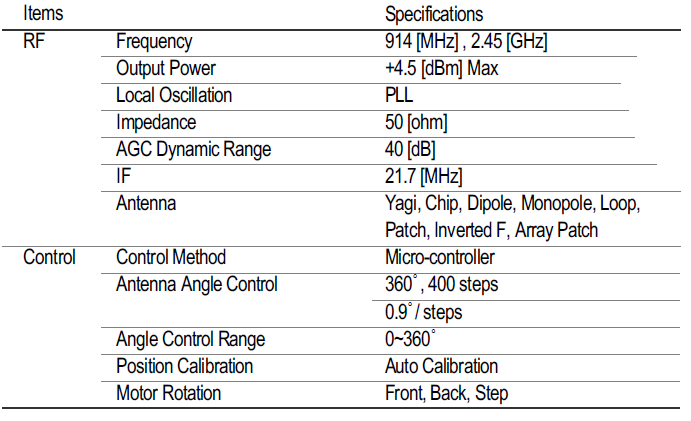

Product Specifications
Experiment Steps
1) Antenna characteristic Experiment
Radiation pattern measurement
Antenna manufacturing and characteristic measurement
2) Mobile communication propagation characteristics experiment
Fading experiment (phase delay, power attenuation, multi path)
Standing wave experiment
Time delay experiment
Doppler frequency experiment
3) Mobile communication propagation environments simulation
Propagation model simulation
Training Contents
Part 1. Introduction and Installation of Program
Chapter 1 Introduction of WATS-2002
Chapter 2 Program Installation and Instruction
Part 2. Antenna characteristics Experiment
Chapter 3 Dipole Antenna Characteristics Experiment
Chapter 4 Yagi Antenna Characteristics Experiment
Chapter 5 Monopole Antenna Characteristics Experiment
Chapter 6 Loop Antenna Characteristics Experiment
Chapter 7 Ceramic Chip Antenna Characteristics Experiment
Chapter 8 Inverted F Antenna Characteristics Experiment
Chapter 9 Patch and Array Patch Antenna Characteristics Experiment
Part 3. Antenna Design and Manufacturing Experiment
Chapter 10 Dipole and Yagi Antenna Production and Analysis Experiment
Chapter 11 Loop Antenna Production and Analysis Experiment
Part 4. Mobile Communication Propagation Experiment
Chapter 12 Phase Delay Experiment
Chapter 13 Power Attenuation Characteristic Experiment
Chapter 14 Multi-Path Fading Experiment
Chapter 15 Time Delay and Doppler Effect Experiment
Chapter 16 Standing Wave Experiment
Part 5. Mobile Communication Propagation Environments Simulation
Chapter 17 Propagation Modeling and Propagation Loss Experiment
