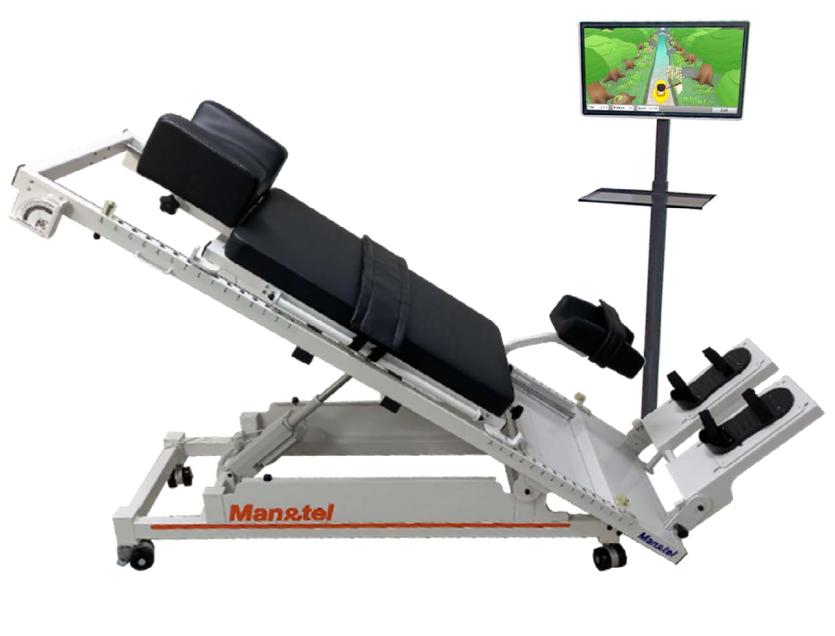

3D Sliding Vertical Balance Trainer「3DBT-81」
Product Features
Target Diseases : Stroke, traumatic brain injury, spinal cord injury, cerebral palsy, elderly people, patients with reduced lower limb motor function
Usage : Lower limb strength enhancement, improvement of joint’s range of motion, vertical balance training, blood circulation improvement, cardiopulmonary function enhancement, and motor control training, range of motion measurement of the knee, strength measurement of the affected leg, balance measurement, cognitive training through contents
Customers : Rehabilitation hospitals, nursing hospitals for the elderly, nursing centers, rehabilitation clinics.
본문
Product Specifications
Size | 800(W) x 2,040(L) x 730(H)mm |
bed height | 570mm |
Installation place | 1,200(W) X 2,200(L) X 1,750(H)mm |
Product weight | 195kg |
Maximum used weight | 120Kg |
Power/Consumption | AC 220V, 50/60Hz / 277W |
Tilt angle | 0~45° |
Footrest tilt angle | -12°~+12°,motor operated |
Composition | Sliding bed, knee holder, all-in-one PC, PC holder, Remote control, Seat belts, fastening pins, assessment & training content, analog meters |

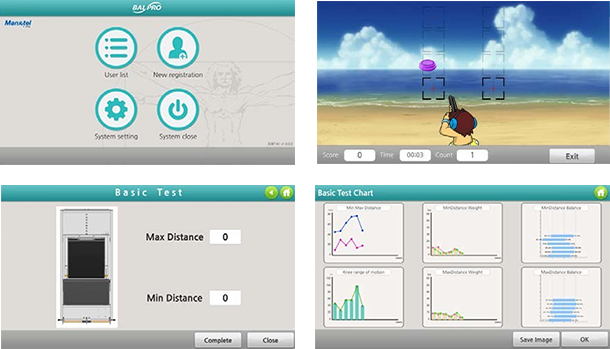

Screen Content
|  |

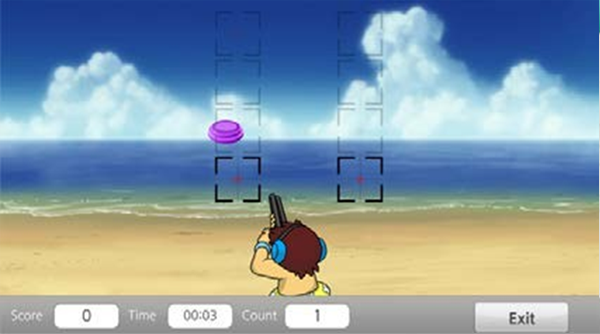

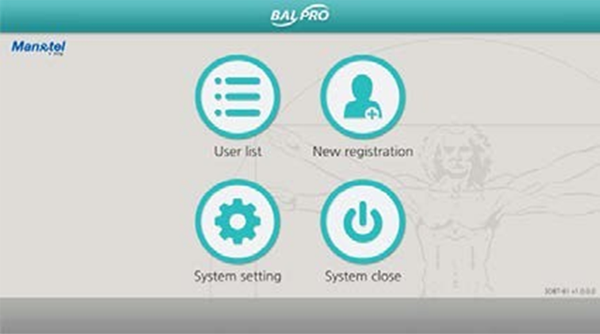

User UI | Clay Shooting |
|  |

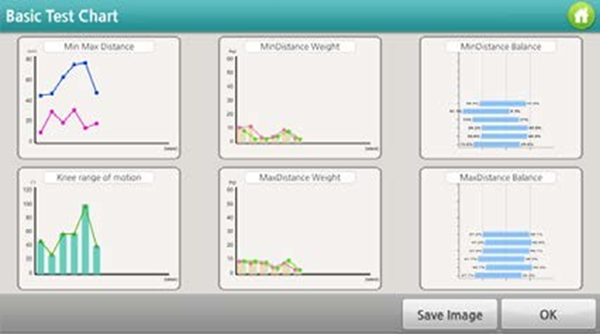

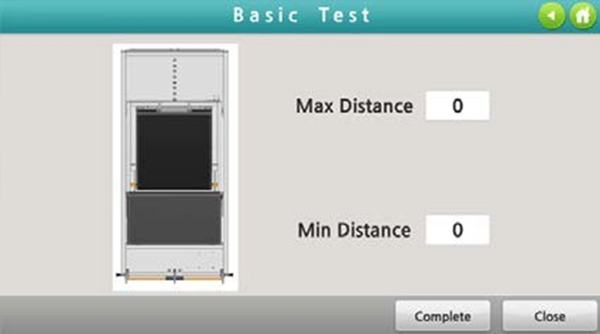

Lower limb function test | Lower limb function check graph |
Medical Equipment Certificates
KFDA Product name : Manually-operated rehabilitation exerciser
KFDA Manufacture Registered No. 3399
KGMP Certificated / ISO13485 Certificated
FDA Listing No. D301665
USA patent : 7,744,546 B2 (June 2010)
Korean Patent (No.10-2042474)
