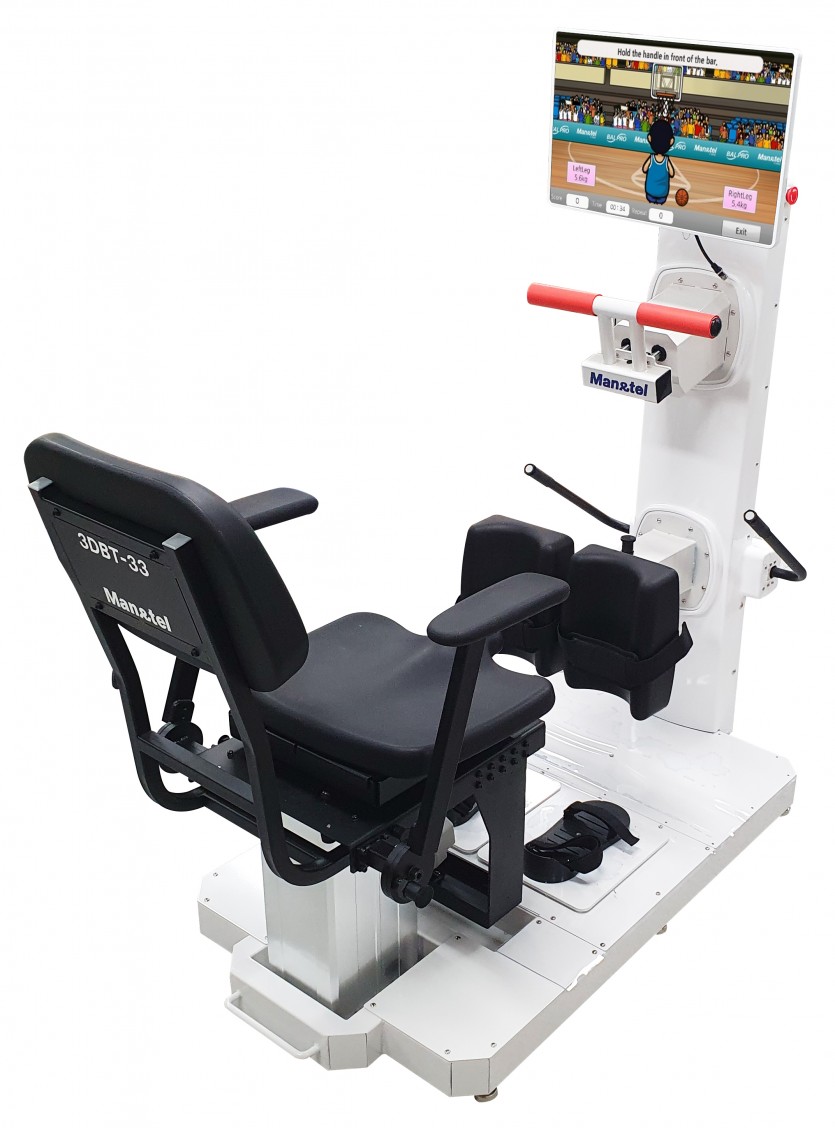

「3DBT-33」
Product Features
Different kinds of training by one equipment
Trunk stability & lower limb assessment & training is possible by using one equipment
Remote control available by Ethernet(LAN) and Wi-fi connection
IT and medical convergence training devices
Real time bio-feedback training.
USB 2.0, 3.0 used
Patient’s own active training
Easy operation based on touch LCD, Window OS
본문
Product Specifications
Size(basic) | 700(W) X 1,550(L) X 1,550(H)mm |
Size(with option) | 700(W) X 1,550(L) X 2,000(H)mm |
Product weight | 250kg |
Option Weight | 40kg |
Max. bearable weight | 150kg |
Power/consumotion | AC 110-220V, 50/60Hz / 180W |
Screen | All-in-one PC, 21.5″ Full HD touch screen |
Composition | Foothold section, Robot arm section, Robot chair section, All-in-one PC, Mechanical body frame Assessment & Training Contents, Option : Safety frame, Safety belt |
youtube link |
Functions
It is a rehabilitation robot training machine that stabilizes trunk and exercises lower limb muscle strength, and trains sit to standing and also trains left and right movement at standing position
In a standing posture, left and right balance evaluation and center of gravity shift training can be performed

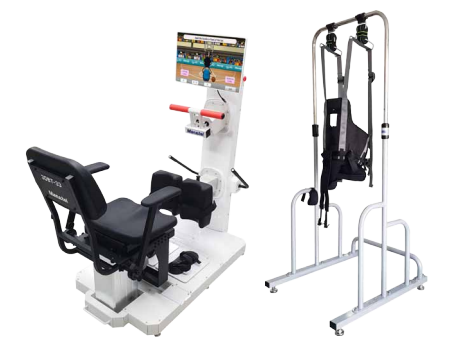

Foothold section, Robot arm section, Robot chair section, All-in-one PC, Mechanical body frame, Assessment & Training Contents
Option : Safety frame, Safety belt
Target Users : Stroke patients, pelvic correction patients, patients who find it uncomfortable to sit upright, those who have difficulty standing
Usage : Trunk training, lower limb strength enhancement, center of gravity shift training, cognitive training.
Customers : Rehabilitation hospitals, elderly care centers, rehabilitation clinics, nursing hospitals for the elderly.

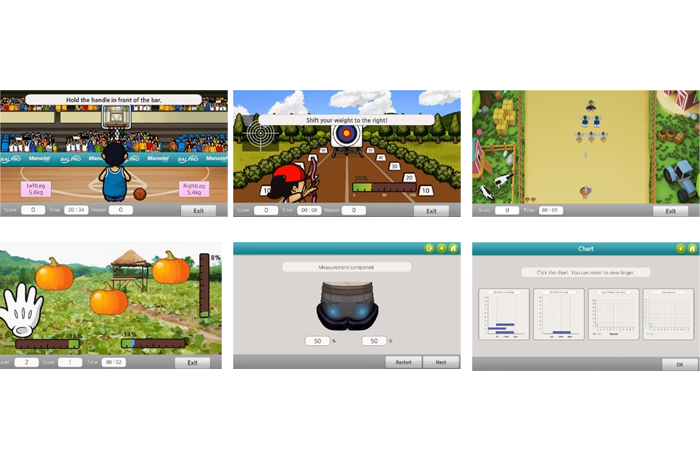

Screen Content
|
|
Sitting and standing training | Cross weight shift training |
|
|
Weight shift training content (Galaga) and 3 others | Weight movement forward,backward, left and right |
|
|
Balance measurement (standing/sitting) | User data management function |
Medical Equipment Certificates
KFDA Product name : System, isokinetic testing and evaluation
KFDA Manufacture Registered No. 3399
KGMP Certificated / ISO13485 Certificated
FDA Listing No. D259110
CE MDD Certificate
Korean Patent (No. 10-103 5675)
