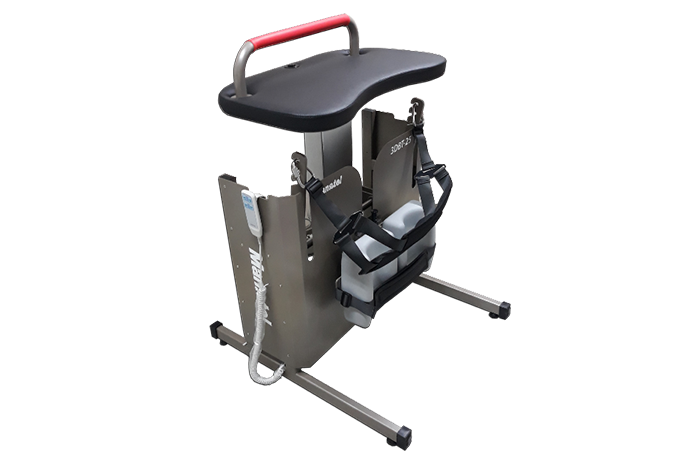

Standing and Balance Trainer「3DBT-25」

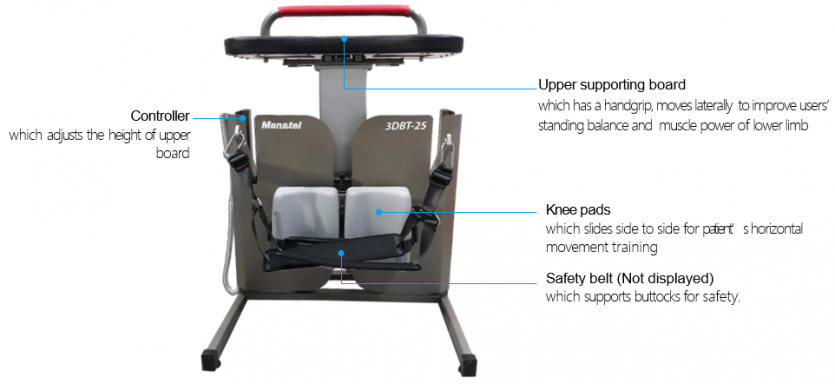

Product Features
Balance maintaining and muscle power strengthening exercise by inducing unbalance of body
Upper board and knee protectors sliding from side to side
Height adjusting function for upper suppoting panel following the height of patient (using electric switch)
Adjustment of length of safety belt according to the patient(using electric switch)
Point color design
본문
Product Specifications
Size | 800(W) X 900(L) X 1,100(H)mm ±5% |
Installation place | 1,250(W) X 900(L) X 1,350(H)mm |
Table lifting range | 300 ±1mm |
Table left and right sliding range | 240 ±5mm |
Knee pad left and right sliding range : | 150 ±5mm |
Product weight | 100Kg |
Max. bearable weight | 150Kg |
Power/Consumption | AC 220V, 50/60Hz / 230W |
Composition | Unbalance inducing parts: Support fixture upper panel Knee pad, Patient fixing parts: Safety belt |
Function
This equipment performs function of standing frame which strengthens lower limb muscles by keeping patient in the standing position.
It enables the patient to do balance maintaining training and muscle power strengthening exercise spontaneously by inducing postural imbalance through sliding upper supporting board and knee pad laterally.
Medical Equipment Certificates
KFDA Product name : Exerciser, orthopaedic, manually-operated
KFDA Manufacture Permission No. 3399
KGMP Certificated / ISO13485 Certificated
FDA Device name : exerciser, non-measuring for stroke rehabilitation
FDA Listing No. D290439
Korea Patent (No. 10-1 652334)
