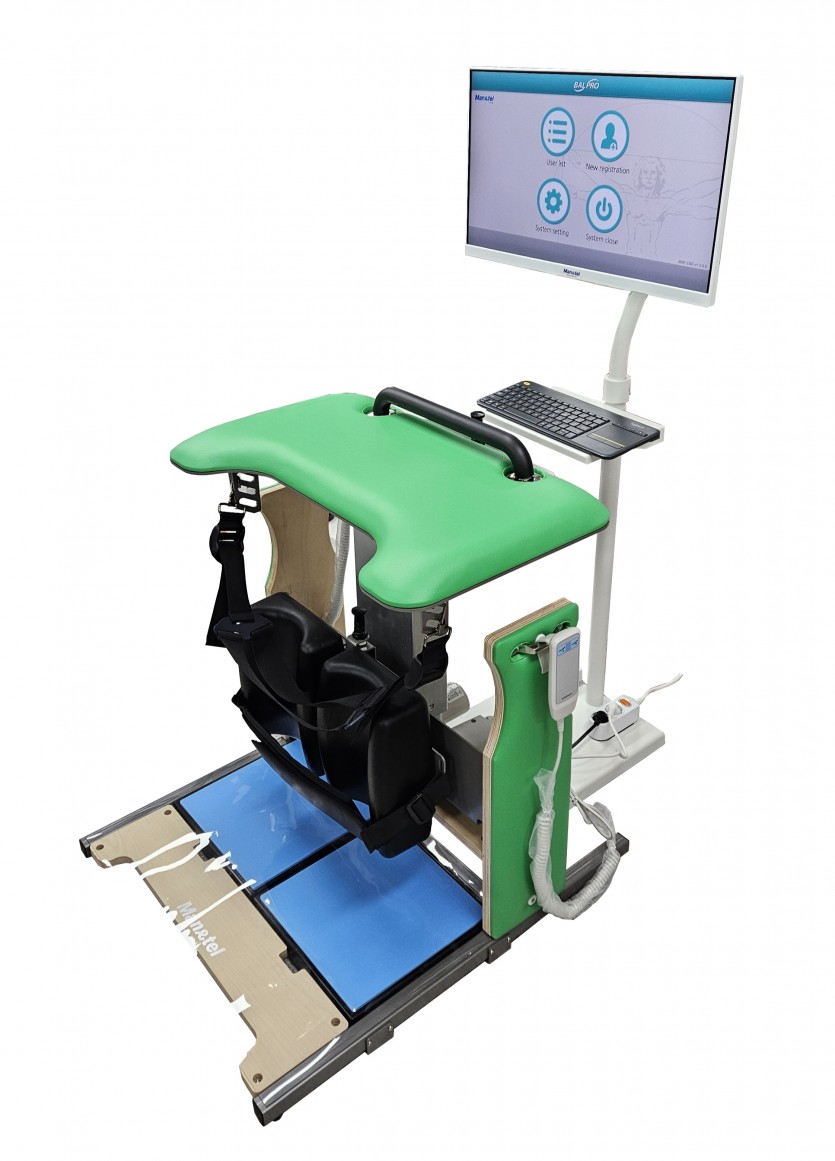

Standing Balance Trainer「3DBT-250-C」(for children)
Product Features
Balance ability and lower limb muscle training by inducing postural imbalance
Left and right sliding function of the top board and knee protectors
Patient movement and real-time interlocking training contents (Bio feedback)
Accumulated data to check the state of improvement of the body
Training and evaluation in one device
Top board height adjustable(electric type)
Training difficulty level selection
Remote diagnosis, control, update, and monitoring for maintenance through the network
본문
Product Specifications
Size | 860(L) × 730(W) × 885 ~ 1,185(H)mm ±10mm |
Installation space | 1,150(L) × 950(W) × 1,700(H)mm |
Table lifting range | 750 ~ 1,185mm ±5% |
Table left and right sliding range | 120 ~ +120mm ±5% |
Knee pad left and right slidimg range | 75~+75mm ±5% |
Product weight | 50Kg |
Maximum used weight | 80Kg |
Composition | Unbalance inducing parts: Support fixture upper panel Knee pad, Patient fixing parts: Safety belt Assessment & Training Contents, Tablet PC, Tablet PC Support, Footplate |
youtube link |
Screen Content Description
The standing balance trainer (for children) induces imbalance of the body with the top and knee support sliding from side to side, increases muscle strength and balance ability of the lower extremities, and detects changes in left and right movements with weight sensors to train through games

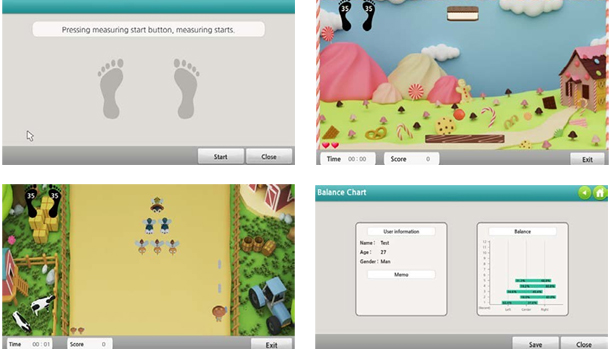

Screen Content
 |
|

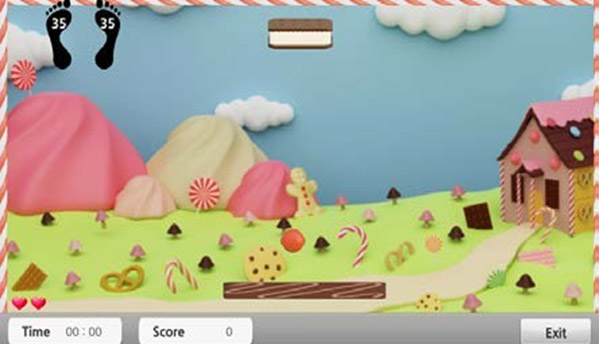

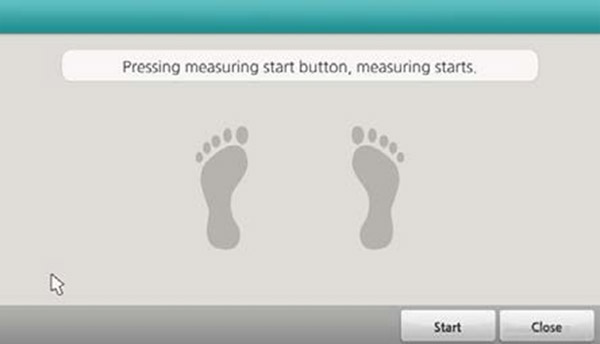

Balance test | Balance Skills Training Content |
|
|

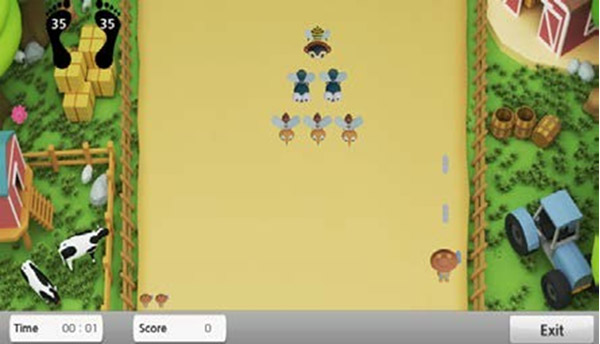

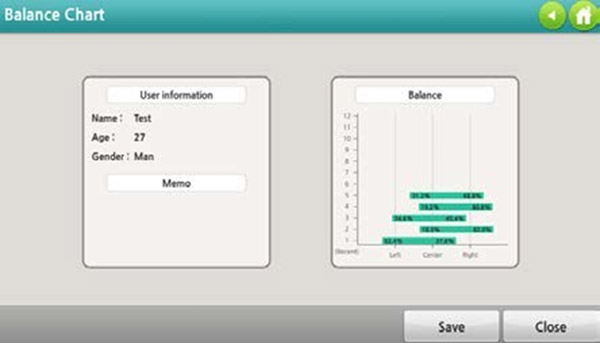

Balance Skills Training Content(Galaga) | Assessment Chart |
Medical Equipment Certificates
KFDA Product name : Exerciser, orthopaedic, manually-operated
KFDA Manufacture Permission No. 3399
KGMP Certificated / ISO13485 Certificated
Korea Patent (No. 10-1652334)
