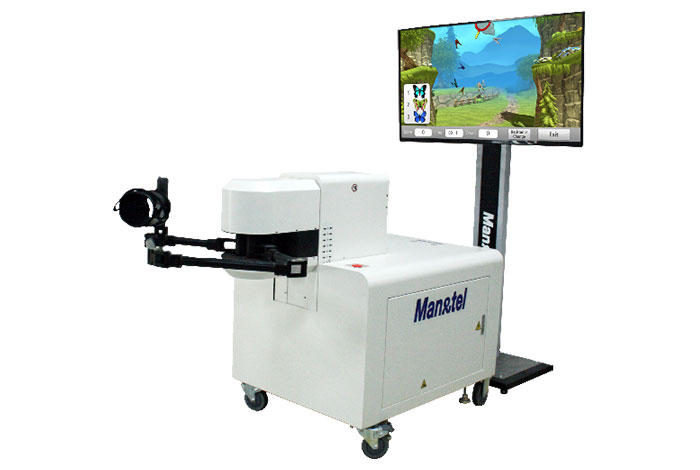

Upper Limb Rehabilitation Robot Trainer「3DBT-61」
Product Features
Horizontal, Slope and Vertical plane training
Passive, Active, Resistive mode training
Setting individual training area
Assessment of muscle strength, motion range and exercise performance
Adjustable arm height
Real time Bio-feedback function
Remote diagnosis, control, update, and monitoring function
본문
Product Specifications
Size | 720(W) X 920(L) X 785~1,185(H)mm |
Installation place | 750(W) X 2,300(L) X 2,000(H)mm |
Product weight | 220kg |
Power/Consumption | AC 220V, 50/60Hz / 250W |
Computer power | AC 100-240V, 50/60HZ, 6A |
TV(monitor) power | AC 220-240V, 50/60HZ, 92W |
Motion degree of freedom | 4DOF |
Monitor | 49″ Full HD screen |
| Composition | Main body, TV monitor, Monitor cradle, Wireless keyboard, Cabled remote control unit, Assessment & Training Contents |
youtube link |

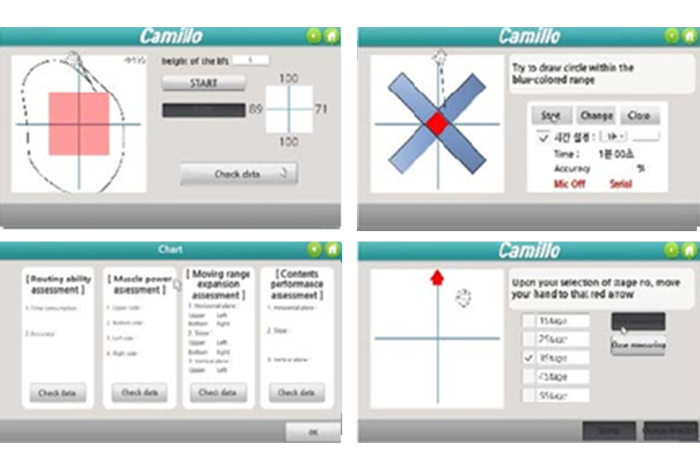

Assessment
Moving Area : Maximun moving area check

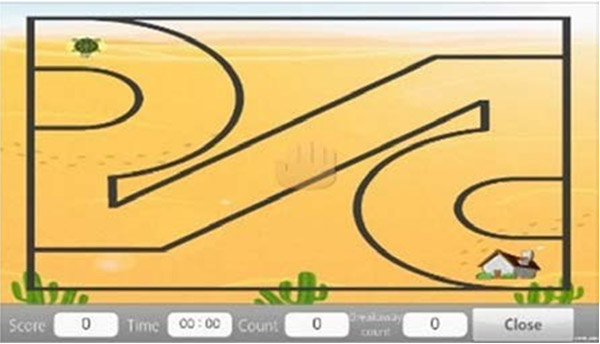

Path : Test of the deviation from the course
Muscle power : Test pushing power to all direction
Cognition : Test cognition by using game contentss

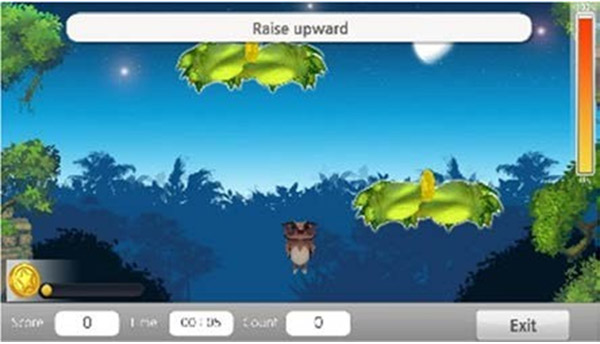

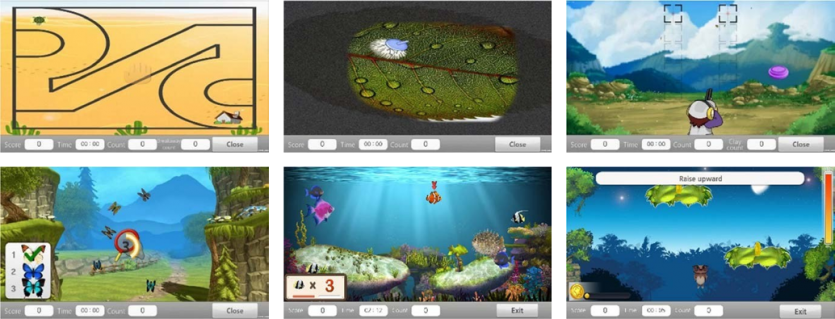

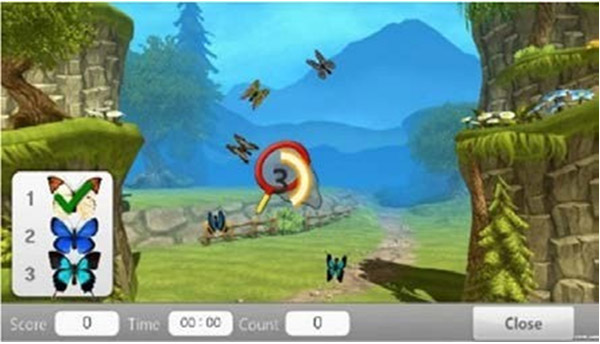

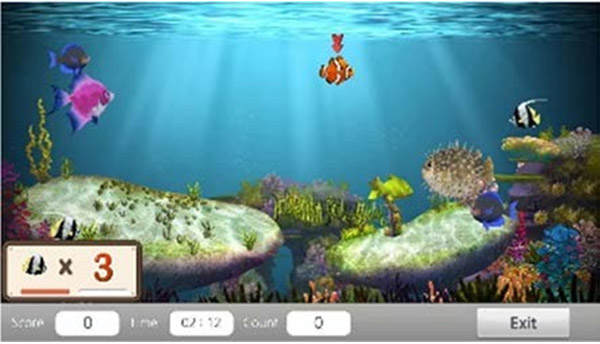

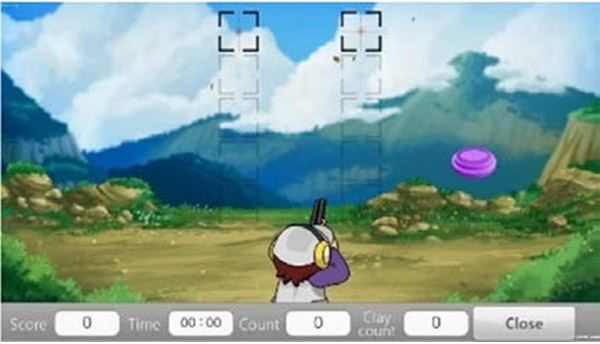

Screen Content
|
|
Horizontal / Passive & Active training | Horizonta & slope / Passive & Active |
 |
|
Vertical / Active training | Horizontal & Slope / Passive & Active |
 |
|
Horizontal & slope / Active & Resistive | Vertical / Active & Resistive |
Medical Equipment Certificates
KFDA Product name : Exerciser, orthopaedic, electrically-powered
KFDA Manufacture Registered No. 3399
KGMP Certificated / ISO13485 Certificated
FDA Registration No. 3011806255
FDA Listing No. D301385
CE Test (2017)
Korea Patent (No. 10-2113233)
Korea Public Procurement Service innovative product Certification
