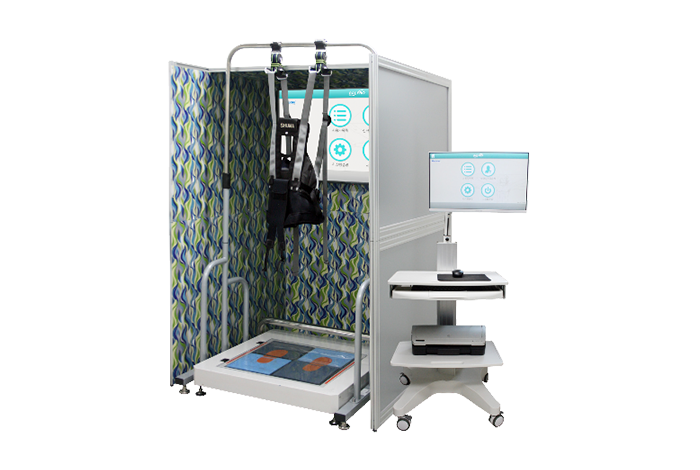

Balance Pro(Dynamic Posturography)「SBT-390」
Product Features
Dynamic body balance test (6 Conditions)
Automatic balance test (30 sec, 60 sec)
Eye movement direction (horizontal, vertical) & movement speed selection function
Customized vestibular rehabilitation training (basic, advanced) function
Assessment and training by analyzing the center of gravity shift
Patient movement and real-time interlocking training contents (Bio feedback)
Identification of improvement status with cumulative evaluation data
Inspection and training with one device
Various training contents
Training difficulty selection function
Dynamic footplate variable angle : (-10°) to (+10°), 5 degree intervals
Moving front screen in 3 steps to present a perspective effect
Remote control function through network
본문
Product Specifications
Size | 1,500(L) ×1,040(W) ×2,250(H)mm±10mm |
nstallation space (excluding control table, housing included) | 1,800(L) × 1,200(W) × 2,550(H)mm ±10mm |
Product weight | 60kg |
Maximum used weight | 150kg |
Power/Power Consumption | - Footrest sensor main body power: USB 5V - Computer power: AC 100~220V, 50/60Hz / 80W - TV (monitor) power: AC 100~220V, 50/60Hz / 60W - Cylinder power: AC 100~220V, 50/60Hz / 15W |
Composition | • PC, monitor, cradle, footrest, inspection contents, blackout room, wireless keyboard • Options: Safety Frame & Seat Belt, Training Contents |
youtube link |
Additional Description
Target Diseases : Dizziness, vestibular neuritis, Meniere's disease, benign paroxysmal positional vertigo, labyrinthitis, vestibular rehabilitation patients, Parkinson's disease, stroke, traumatic brain injury, cerebral palsy, spinal cord injury, elderly individuals, those with reduced lower limb motor function.
Usage : Automatic balance test, dynamic postural balance test, customized vestibular exercises, balance training, fall prevention
Customers : Otolaryngology clinics, neurology clinics, rehabilitation clinics.
6 condition tests (sensory organization test; SOT)
-Condition 1 : with the footplate fixed & eyes open
-Condition 2 : with the footplate fixed & an eye patch worn
-Condition 3 : with the footplate fixed & the moving front screen for a perspective effect
-Condition 4 : with the dynamic footplate (at regular interval) & eyes open
-Condition 5 : with the dynamic footplate & an eye patch worn
-Condition 6 : with the dynamic footplate & the moving front screen for a perspective effect

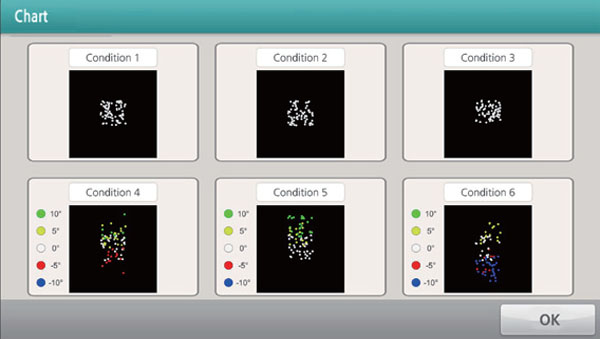

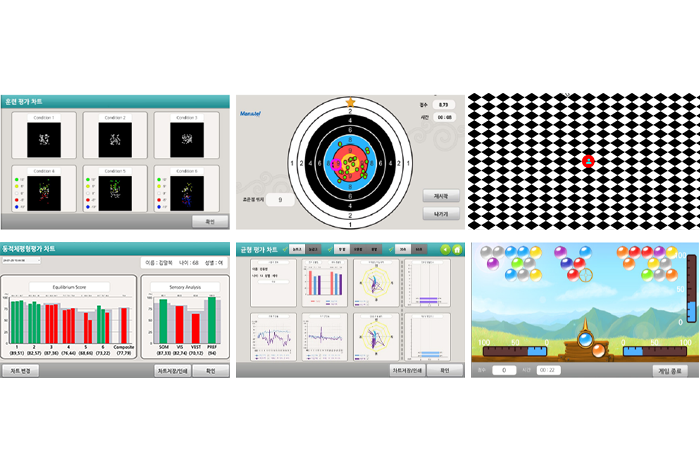

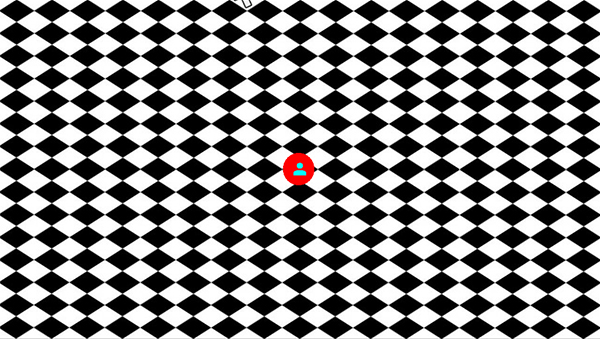

Screen Content
|
|
Dynamic balance test | Automatic balance test |
|
|

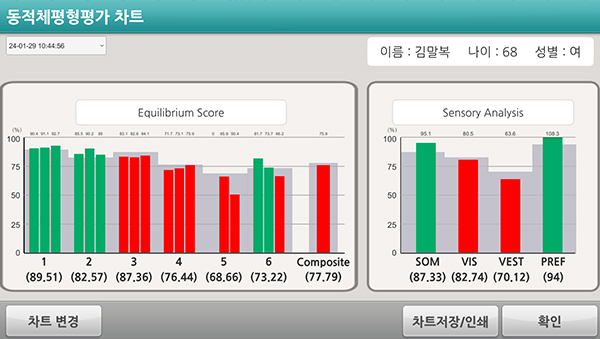

Customized vestibular exercise | Dynamic body balance test result chart |
|
|

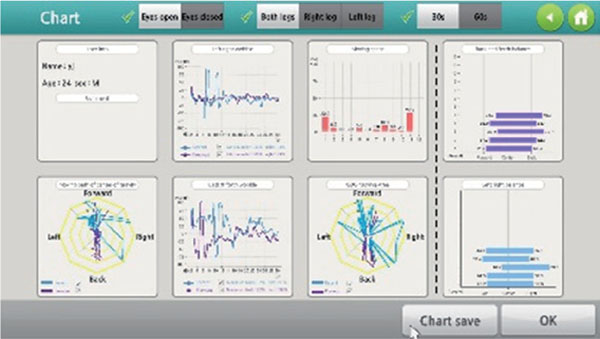

Automatic balance test result chart | Balance training contents (option) |
Medical equipment certification
KFDA Product name : Manually-operated rehabilitation exerciser
KFDA Manufacture Registered No. 3399
KGMP Certificated / ISO13485 Certificated
Korea Patent (No. 10-2113221)
