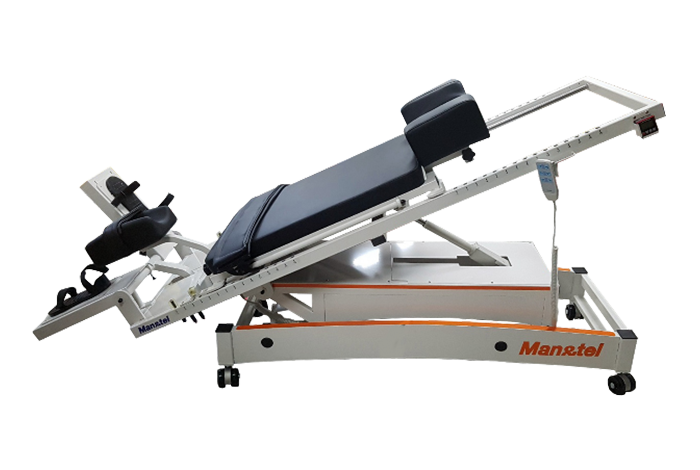

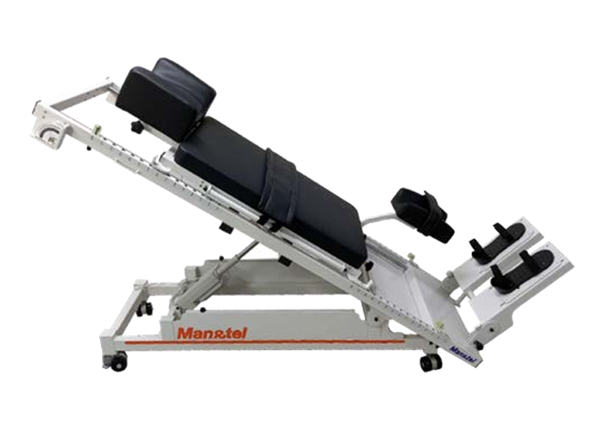

Sliding Balance Trainer「MSBT-10」(Standard model)

Product Features

Usage : Lower limb strength enhancement, improvement of joint’s range of motion, vertical balance training, blood circulation improvement, cardiopulmonary function enhancement, and motor control training.

Customers : Rehabilitation hospitals, nursing hospitals for the elderly, nursing centers, rehabilitation clinics.

How to use : Lie down safely and slide the body up and down by bending and straightening knees, adjusting the load by changing the angle of the bed.

본문

Product Specifications

Size	800(W) x 2,040(L) x 730(H)mm
Bed height	570mm
IInstallation space	1,200(W) X 2,200(L) X 1,750(H)mm
Product weight	110kg
Max. bearable weight	120Kg
Power/Consumption	AC 220V, 50/60Hz / 230W
Base tilt angle	0~45°
Foothold tilt angle	-12°~+12°
Foothold tilting method	Manual system
Composition	Sliding bed, Foothold section, Remote control unit, Safety belt, Fixing pin, Knee brace, Cylinder(2 module), Analog angle meter
youtube link	https://www.youtube.com/watch?v=prIE4QKPgLc

Feature

Reconstruction of muscle, recovery of joint’s motor ability

Applying difficulty to the training by gravity

Left and right selection training

Both legs training

Muscle power strengthening training of lower limb

Vertical Balance ability training

Medical Equipment Certificates

KFDA Product name : Manually-operated rehabilitation exerciser

KFDA Manufacture Registered No. 3399

KGMP Certificated / ISO13485 Certificated

FDA Listing No. D3301901

USA patent : 7,744,546 B2 (June 2010)

Korean Patent (No.10-2042474)
