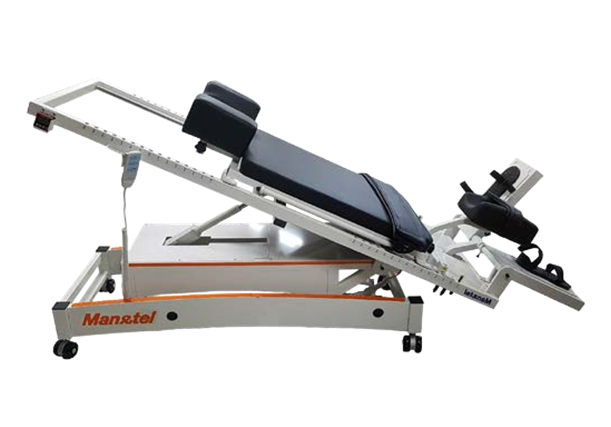

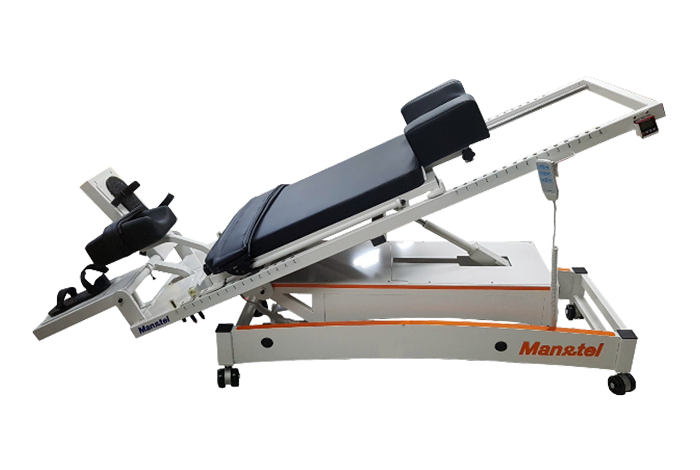

Sliding Balance Trainer「MSBT-10」(High-end model)
Product Features
Usage : Lower limb strength enhancement, improvement of joint’s range of motion, vertical balance training, blood circulation improvement, cardiopulmonary function enhancement, and motor control training.
Customers : Rehabilitation hospitals, nursing hospitals for the elderly, nursing centers, rehabilitation clinics.
How to use : Lie down safely and slide the body up and down by bending and straightening knees, adjusting the load by changing the angle of the bed.
본문
Product Specifications
Size | 800(W) x 2,040(L) x 730(H)mm |
Bed height | 550~750mm |
Installation space | 1,200(W) X 2,200(L) X 1,750(H)mm |
Product weight | 165kg |
Max. bearable weight | 120Kg |
Power/Consumption | AC 220V, 50/60Hz / 277W |
Base tilt angle | 0~45° |
Foothold tilt angle | -12°~+12° |
Foothold tilting method | Motor operated |
Composition | Sliding bed, Foothold section, Remote control unit, Safety belt, Fixing pin, Knee brace,Cylinder(3 modules), Analog Angle meter |
youtube link |
Feature
Reconstruction of muscle, recovery of joint’s motor ability
Applying difficulty to the training by gravity
Left and right selection training
Both legs training
Muscle power strengthening training of lower limb
Vertical Balance ability training
Medical Equipment Certificates
KFDA Product name : Manually-operated rehabilitation exerciser
KFDA Manufacture Registered No. 3399
KGMP Certificated / ISO13485 Certificated
FDA Listing No. D3301901
USA patent : 7,744,546 B2 (June 2010)
Korean Patent (No.10-2042474)
