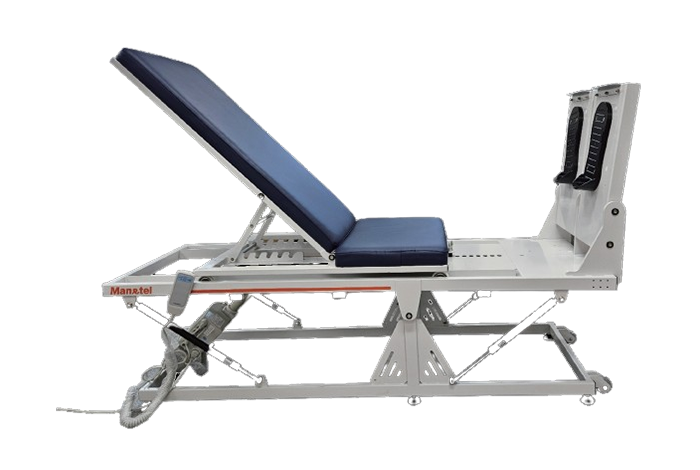

Sliding Balance Trainer「MSBT-10-A」
Product Features
Target Users : Stroke patients, elderly people, and all those with reduced lower limb motor function.
Usage : Lower limb strength enhancement, improvement of joint’s motion range, vertical balance training, blood circulation improvement, cardiopulmonary function enhancement, and motor control training.
Customers : Daycare centers, senior welfare centers, silver towns, rehabilitation hospitals, nursing hospitals for the elderly, nursing centers, rehabilitation clinics.
How to use : Lie down safely and slide the body up and down by bending and straightening knees, adjusting the load by changing the angle of the bed.
본문
Product Specifications
| Size | 600(W) X 1,620(L) X 525(H)mm |
| Installation space | 800(W) X 1,800(L) X 1,750(H)mm |
| Product weight | 80kg |
| Max. bearable weight | 100Kg |
| Power/Consumption | AC 220V, 50/60Hz / 230W |
| Base tilt angle | 0~30° ±5% |
| Backrest tilt angle |
10~40° |
| Components | Sliding bed,Foothold section,Remote control unit,Safety belt,Fixing pin, Knee brace,Cylinder, Analog angle meter |
Features
- Reconstruction of muscle, recovery of joint’s motor ability
- Left and right selection training
- Training for strengthening lower limb muscle
- Adjusting difficulty levels by angle change
- Simultaneous both legs training
- Vertical Balance ability training
Medical Equipment Certificates
- KFDA Product name : Manually-operated rehabilitation exerciser
- KFDA Manufacture Registered No. 3399
- KGMP Certificated / ISO13485 Certificated
- FDA Listing No. D301901
- USA patent : 7,744,546 B2 (June 2010)
- Korean Patent (No.10-2042474)
