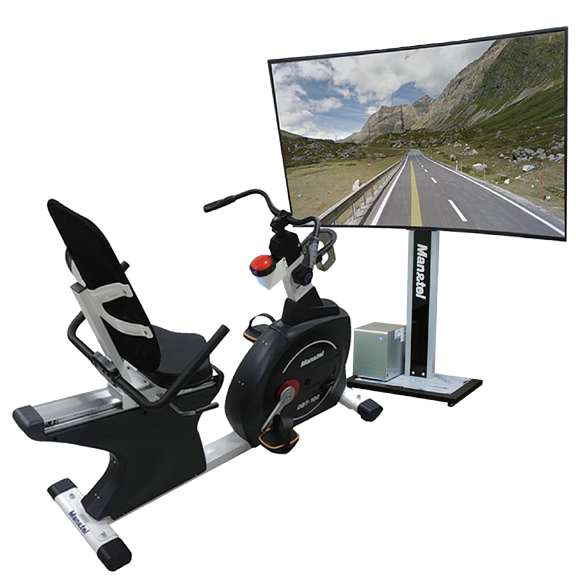

Dream’s Bike「DBT-100」 Lower limb and memory trainer

Product Features

Lower limb strengthening exercise while riding a bicycle

Driving on a virtual road identical to the real road

Training for memory improvement, prevention and delay of dementia

Exercise safely indoors

Customized strength training with load control function

Driving direction adjustable

Driving time, distance, speed, real-time display, screen enlargement function

endurance training by speed control

Cognitive training (in combination with lower limb exercise)

본문

Product Specifications

Bike size	750(W) X 1,550(L) X 1,300(H)mm
Installation space	1,250(W) X 2,800(L) X 2,000(H)mm
Bike product weight	112kg
Bike body power	USB 5V
Computer power	AC 100~220V, 50/60Hz, 120W
TV (monitor) power	AC 100~220V, 50/60Hz, 80W
Motion sensor (option) power	AC 100~220V, 50/60Hz, 15W
Internet speed	500Mbps or higher is recommended
Monitor	49” Full HD flat screen
Composition	Basic : Bicycle, computer, TV (monitor), TV stand, Wireless keyboard, 10m LAN, mat, training content Options: Motion sensor, upper extremity training content
youtube link	https://www.youtube.com/watch?v=zvM9f-WwZsc

Additional Description

Target users : Lower limb rehabilitation patients, people with depression, lower limb disabilities, mild cognitive impairment,&the elderly

Usage : Fall prevention, depression relief, dementia delay through lower limb exercises, cognitive training & digital traveling

Customers : Senior centers, elderly welfare centers, day care centers, elderly care centers, senior towns, disability welfare centers, public health centers, personal use.

Screen Content

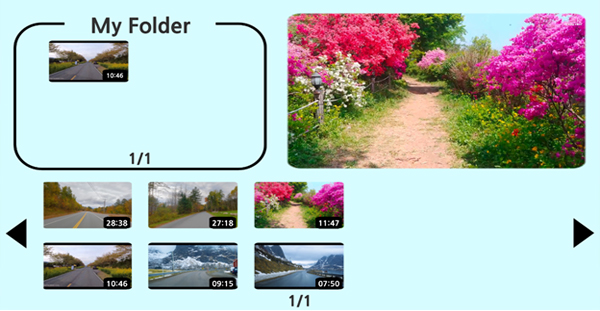

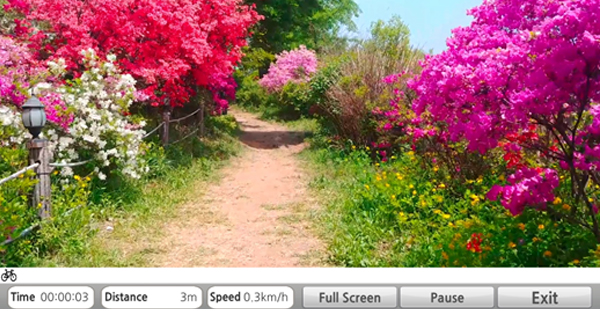

Healing tour Healing biking into beautiful scenery	Healing tour editing Can choose and add tour destinations

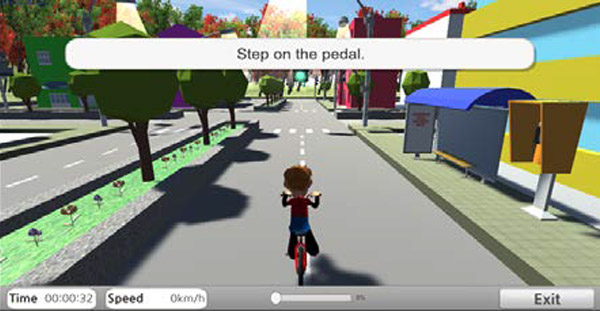

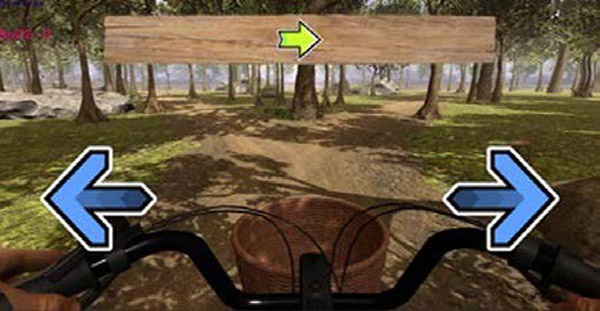

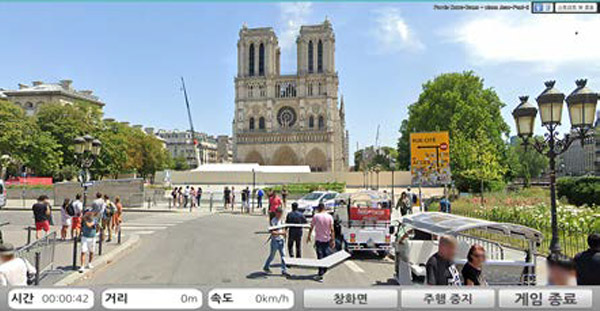

Digital tour Biking on a virtual road with real road view	Cognitive training Finding the way at a fork

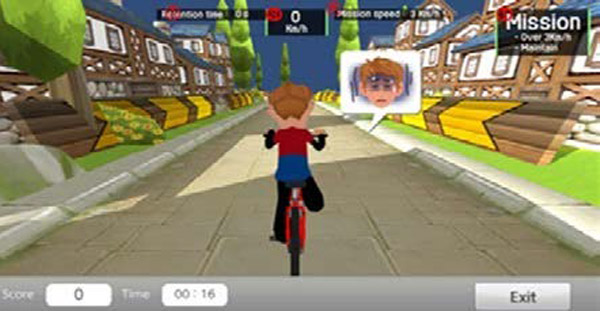

Endurance training Training at an individual speed and load	Response & cognitive training Training to cope with sudden situation

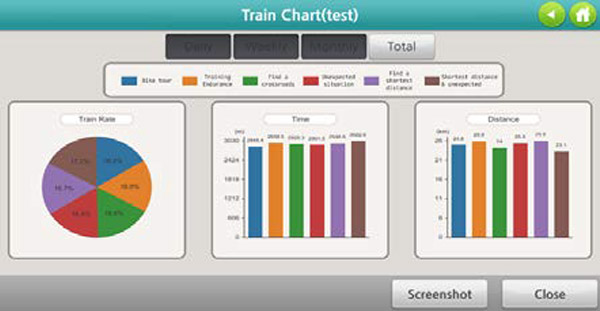

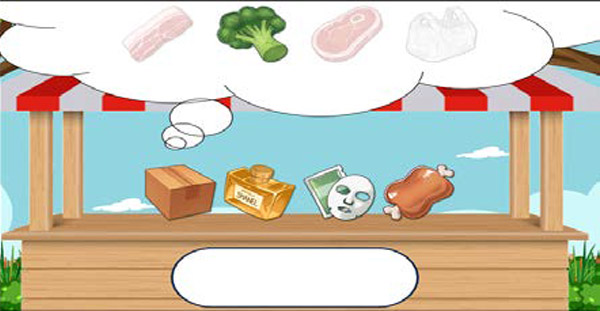

Memory & cognitive training Finding the missing objects	Daily, weekly, monthly data graph Managing users’ training results in graph

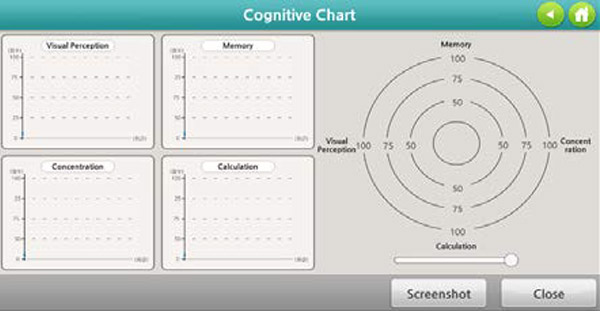

Training result chart(cognition) Managing users’ training result in chart

Medical Equipment Certificates

KFDA Product name : Manually-operated rehabilitation exerciser

KFDA Manufacture Permission No. 3399

KGMP Certification / ISO13485 Certification

FDA Registration No. 3011806255

FDA Listing No. D301385

Registration of related patents (No. 10-2033939)

Japan, U.S. Patent Registration (2022)
